Product Description
Pindee Valve supply Stainless steel lug type knife gate valve flange standard is according to DIN PN10, PN16,Class 150 and JIS 10K. A wide variety of stainless steel options are available to our customers, such as CF8, CF8M, CF3M, 2205, 2207. Knife gate valves are used in a wide range of applications，such as pulp and paper, mining,bulk transport,waste water treatment, and etc.

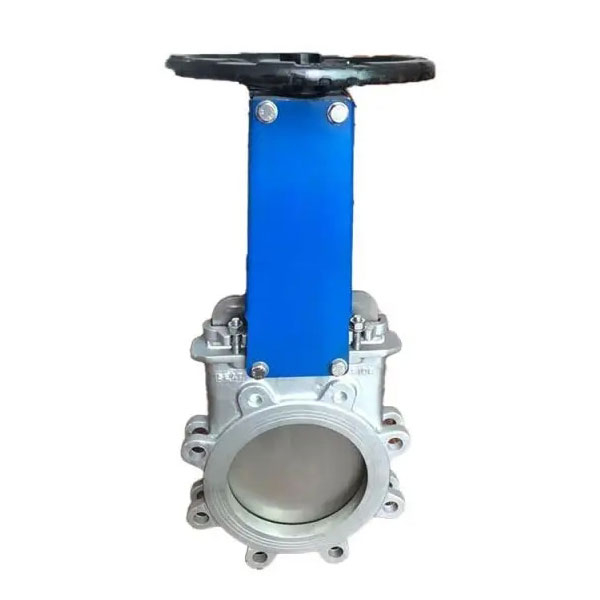

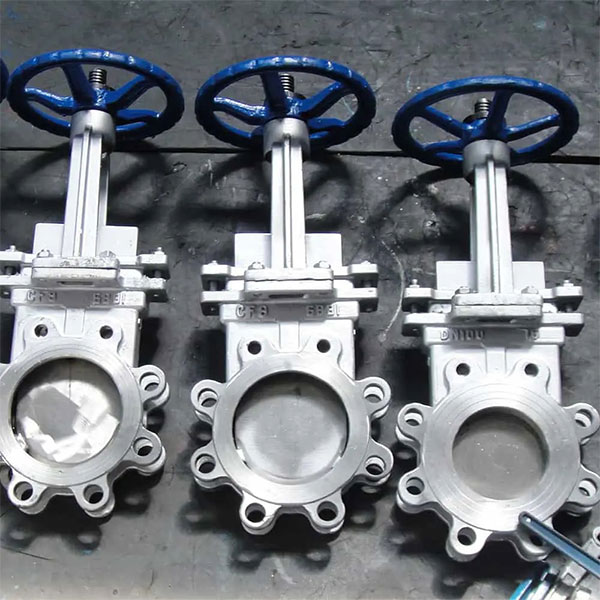

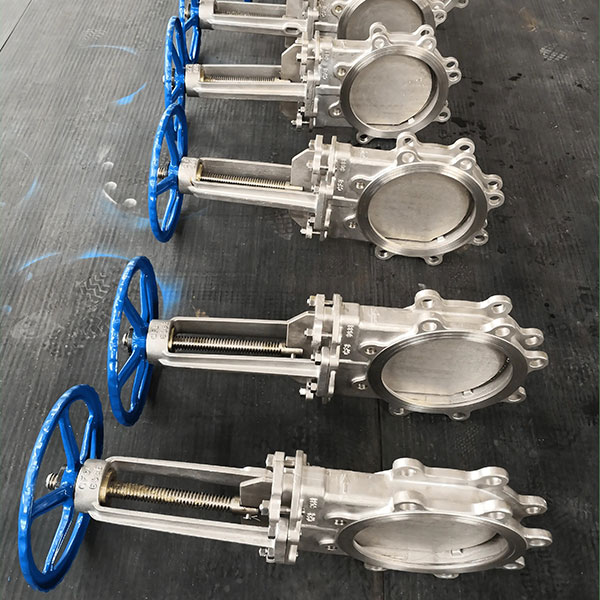

lug type knife gate valve
Size:2”-80”/DN50-DN2000
Pressure Rating:PN10/16, 150LB
Warranty:18 Month
Brand Name:Pindee Valve
Service:OEM
knife gate valve made in China
| Size & Pressure Rating & Standard | |
| Size | DN40-DN2000 |
| Pressure Rating | DN50-100 PN16 DN150-200 PN10 DN250-400 PN7 DN450-600 PN5 DN650-750 PN4 DN800-900 PN3 DN1000 PN2 |
| Design Standard | JB/T8691-2013 |
| Flange Standard | GB/T15188.2-94 chart6-7 |
| Test Standard | GB/T13927-2008 |
| Material | |
| Body | Ductile iron; WCB; CF8; CF8M; 2205; 2507 |
| Disc | SS304; SS316; 2205; 2507; 1.4529 |
| Stem/Shaft | SS410/420/416; SS431; SS304; Monel |
| Seat | Stainless Steel+STL EPDM (120°C) /Viton(200°C)/PTFE(200°C) /NBR(90°C) |
| Bushing | PTFE, Bronze |
| O Ring | NBR, EPDM, FKM |

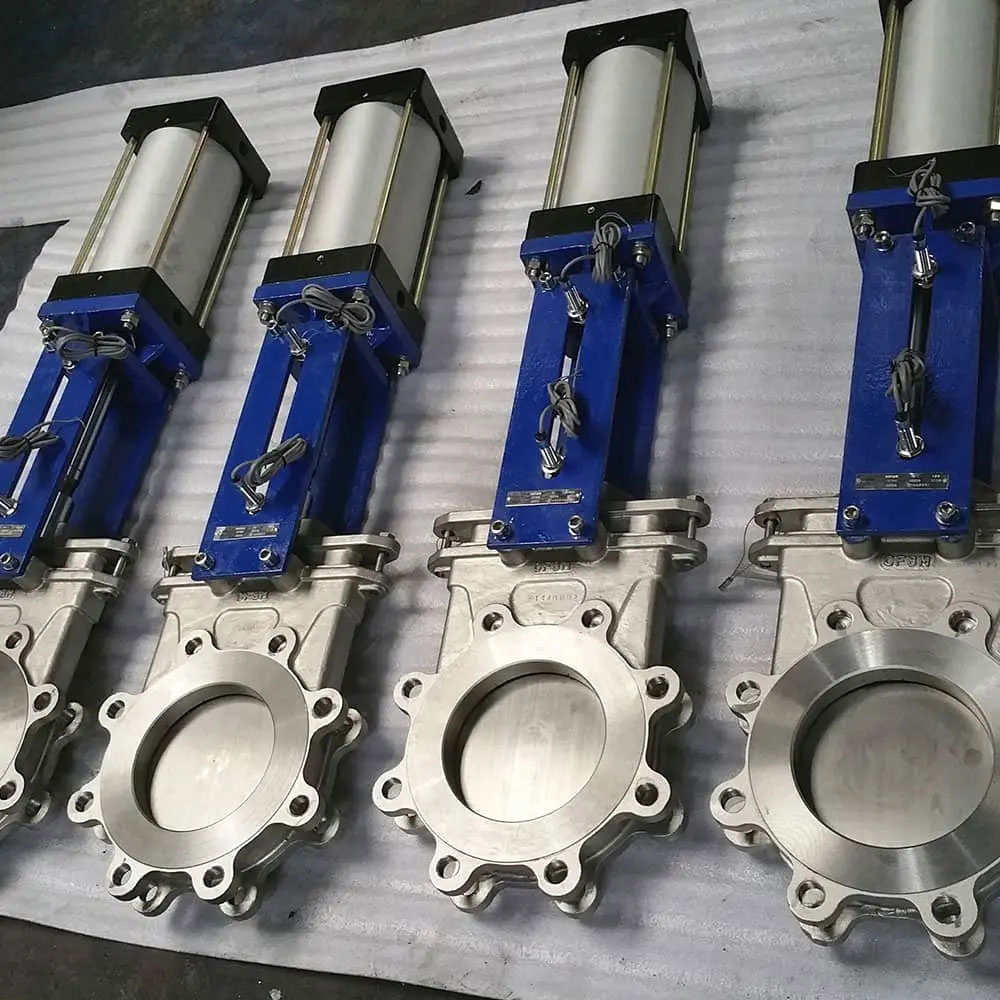

| Actuator | Gear Box, Electric Actuator, Pneumatic Actuator |
