Product Description

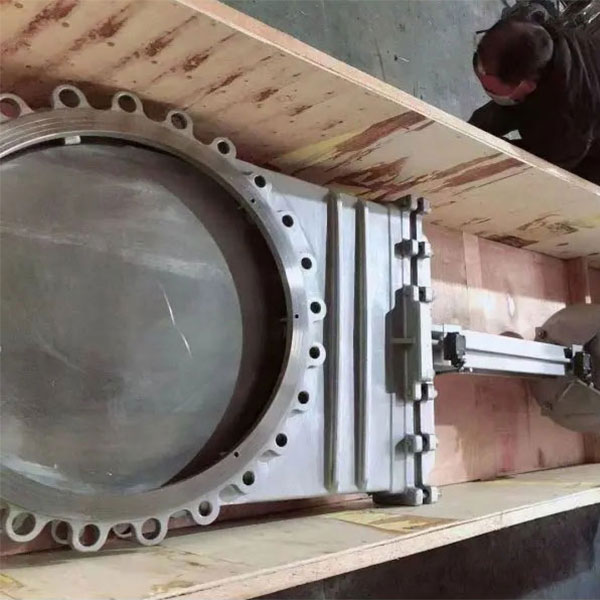

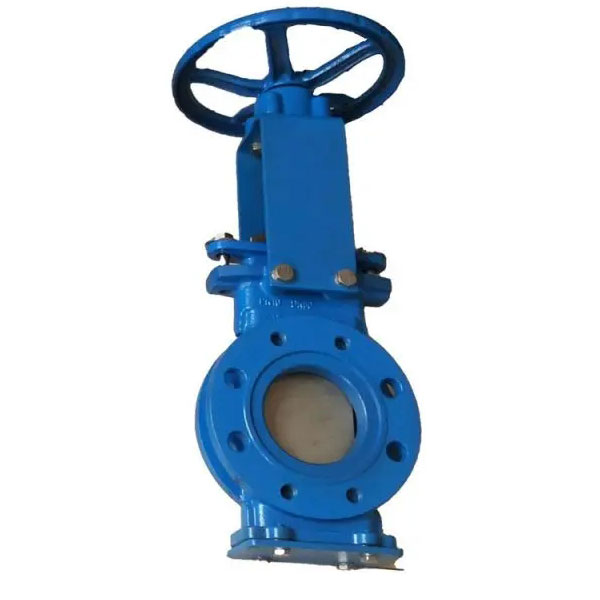

Stainless steel Class150 Flange Knife Gate Valve and Ductile iron PN16 Class150 Flange Knife Gate Valve Depending on the medium and working conditions, DI and stainless steel are available as valve bodies, and our flange connections are PN10, PN16 and CLASS 150 and etc. The connection can be wafer, lug and flange. Flange Knife Gate Valve with flange connection for better stability. Knife gate valve has the advantages of small size, small flow resistance, light weight, easy to install, easy to disassemble, etc.
Size:2”-80”/DN50-DN2000
Pressure Rating:PN10/16, 150LB
Warranty:18 Month
Brand Name:Pindee knife Valve
Service:OEM
| Size & Pressure Rating & Standard | |
| Size | DN40-DN2000 |
| Pressure Rating | DN50-100 PN16 DN150-200 PN10 DN250-400 PN7 DN450-600 PN5 DN650-750 PN4 DN800-900 PN3 DN1000 PN2 |
| Design Standard | JB/T8691-2013 |
| Flange Standard | GB/T15188.2-94 chart6-7 |
| Test Standard | GB/T13927-2008 |
| Material | |
| Body | Ductile iron; WCB; CF8; CF8M; 2205; 2507 |
| Disc | SS304; SS316; 2205; 2507; 1.4529 |
| Stem/Shaft | SS410/420/416; SS431; SS304; Monel |
| Seat | Stainless Steel+STL EPDM (120°C) /Viton(200°C)/PTFE(200°C) /NBR(90°C) |
| Bushing | PTFE, Bronze |
| O Ring | NBR, EPDM, FKM |
| Actuator | Gear Box, Electric Actuator, Pneumatic Actuator |
