Product Description

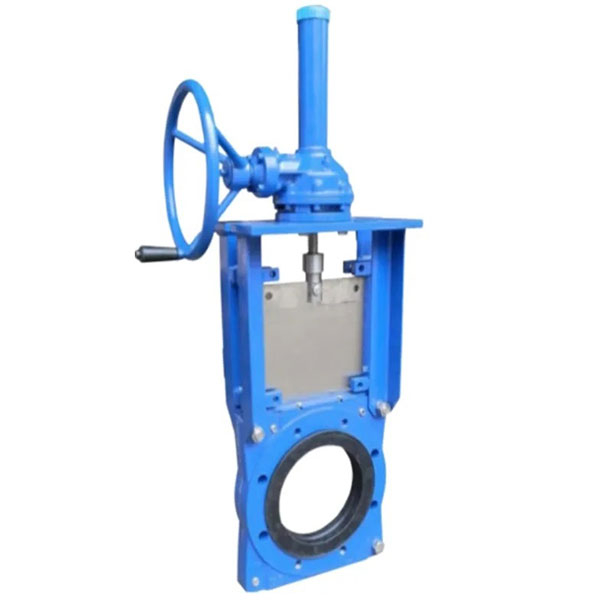

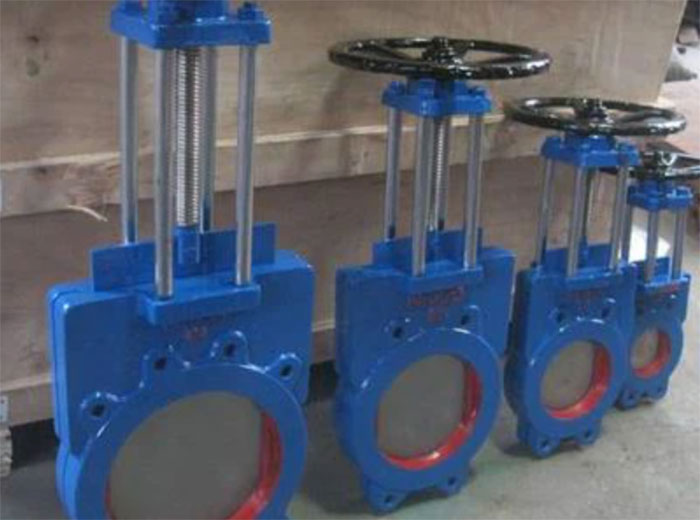

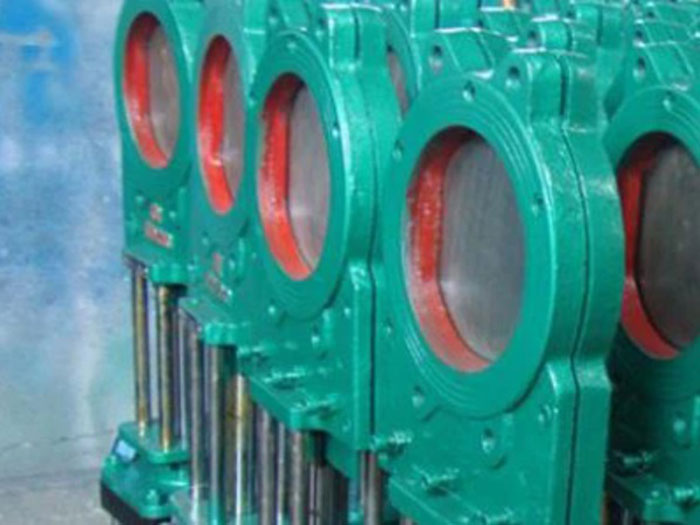

Pindee knife gate valve Manufacture Slurry Knife gate valve made in China adopts the double-clip capping structure, which is small in volume and light in weight; the completely open channel can prevent the medium from depositing in the valve; Slurry Knife gate valve manufacture,the newly developed U-ring can ensure the good sealing of the valve; the bracket adopts the capping structure, which has good sealing performance; the outer sealing of the gate plate is only elastic through embedded in the valve body. High quality Slurry Knife gate valve,The sealing strip can be realized, and can be adjusted by screws and pressing plates; the flow resistance is small, and the installation and maintenance are convenient.
Main technical parameters and performance:
Nominal pressure: 0.6MPa, 1.0MPa, 1.6MPa
Nominal diameter: DN50~1000mm
Applicable temperature: -15~+200 C
Connecting flange: GB/T9113, JB/T79
Main materials: HT250, WCB
Sealing: NBR,EPDM
