Product Description

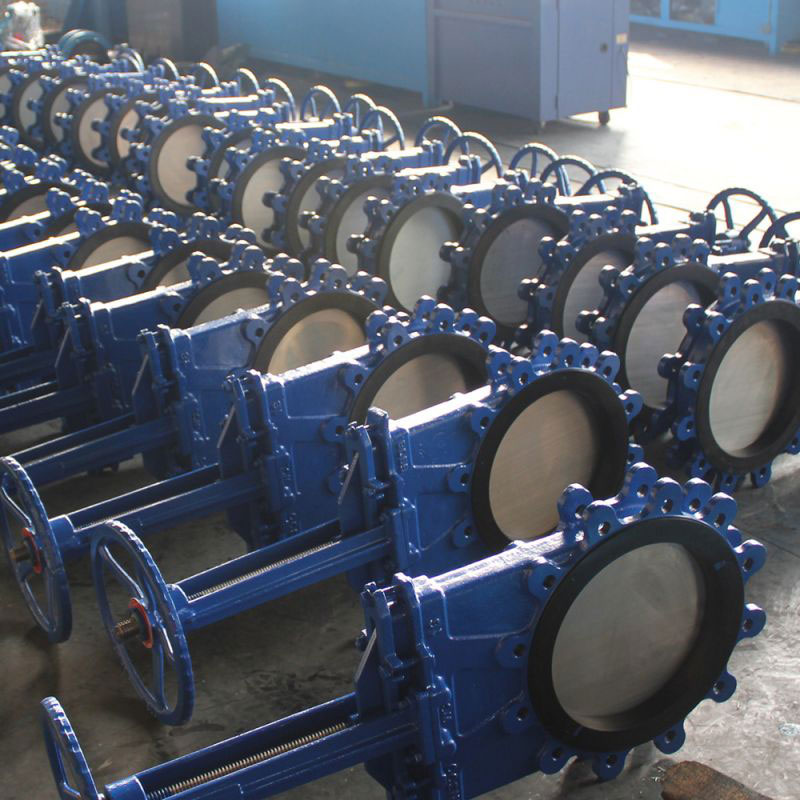

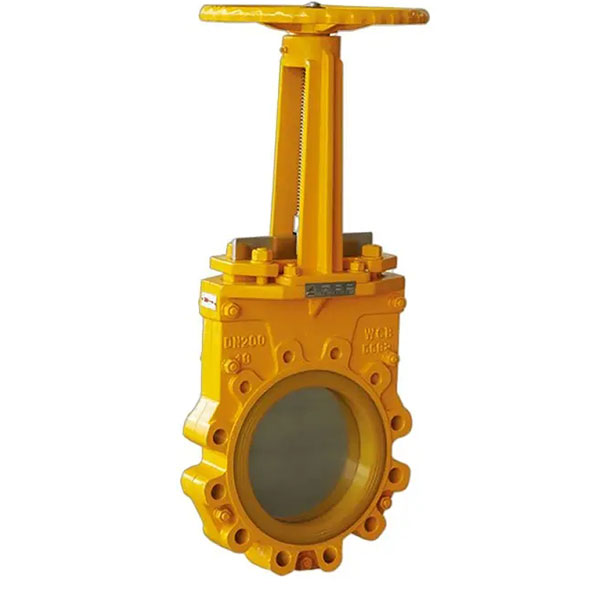

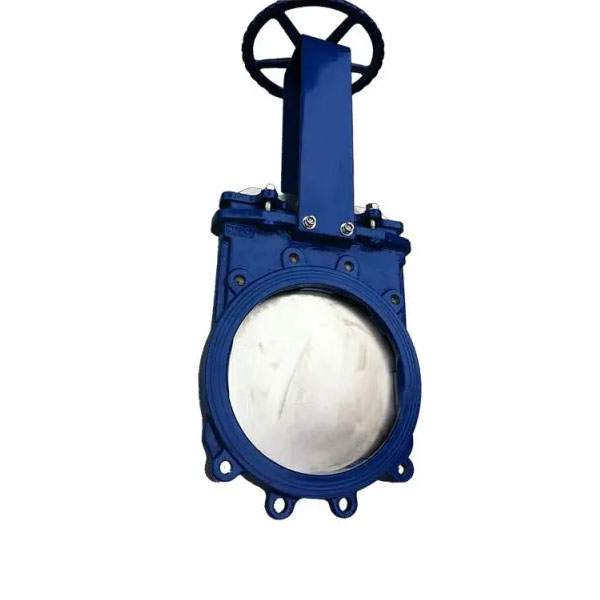

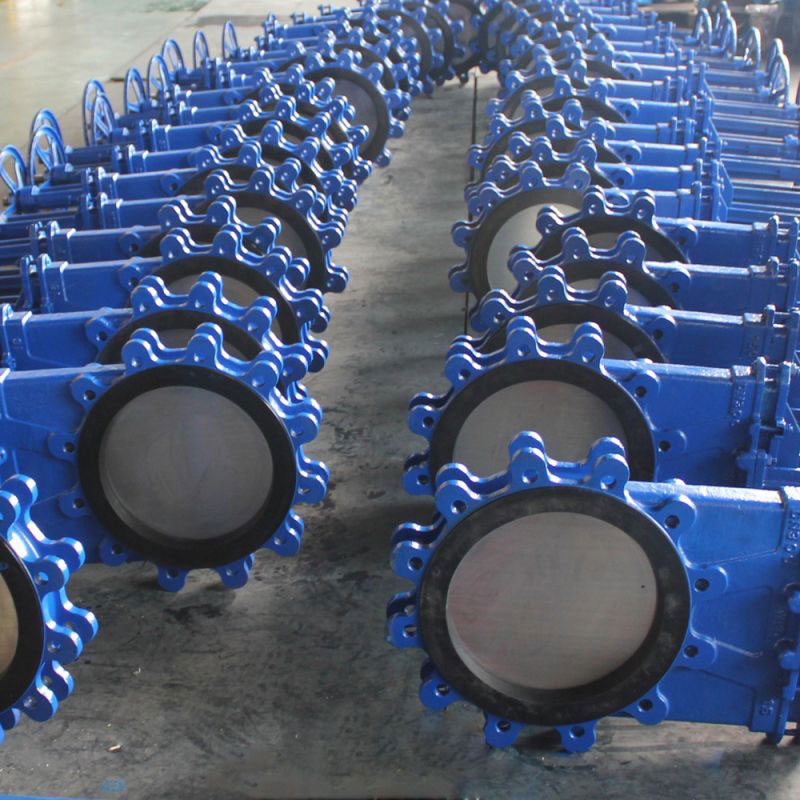

The Ductile Iron PN10 Lug Knife Gate Valve and Ductile Iron PN16 Lug Knife Gate Valve is one of the most economical and practical knife gate valves. Class150 Lug Knife Gate Valve,The main components of a knife gate valve consist of the valve body, knife gate, seat, packing and valve shaft. Depending on the needs, we have rising stem and non-rinsing stem knife gate valves.
Size:2”-80”/DN50-DN2000
Pressure Rating:PN10/16, 150LB
Warranty:18 Mont
Brand Name:Pindee Lug Knife Valve
Service:OEM
| Size & Pressure Rating & Standard | |
| Size | DN40-DN2000 |
| Pressure Rating | DN50-100 PN16 DN150-200 PN10 DN250-400 PN7 DN450-600 PN5 DN650-750 PN4 DN800-900 PN3 DN1000 PN2 |
| Design Standard | JB/T8691-2013 |
| Flange Standard | GB/T15188.2-94 chart6-7 |
| Test Standard | GB/T13927-2008 |
| Material | |
| Body | Ductile iron; WCB; CF8; CF8M; 2205; 2507 |
| Disc | SS304; SS316; 2205; 2507; 1.4529 |
| Stem/Shaft | SS410/420/416; SS431; SS304; Monel |
| Seat | Stainless Steel+STL EPDM (120°C) /Viton(200°C)/PTFE(200°C) /NBR(90°C) |
| Bushing | PTFE, Bronze |
| O Ring | NBR, EPDM, FKM |
| Actuator | Gear Box, Electric Actuator, Pneumatic Actuator |
