Product Description

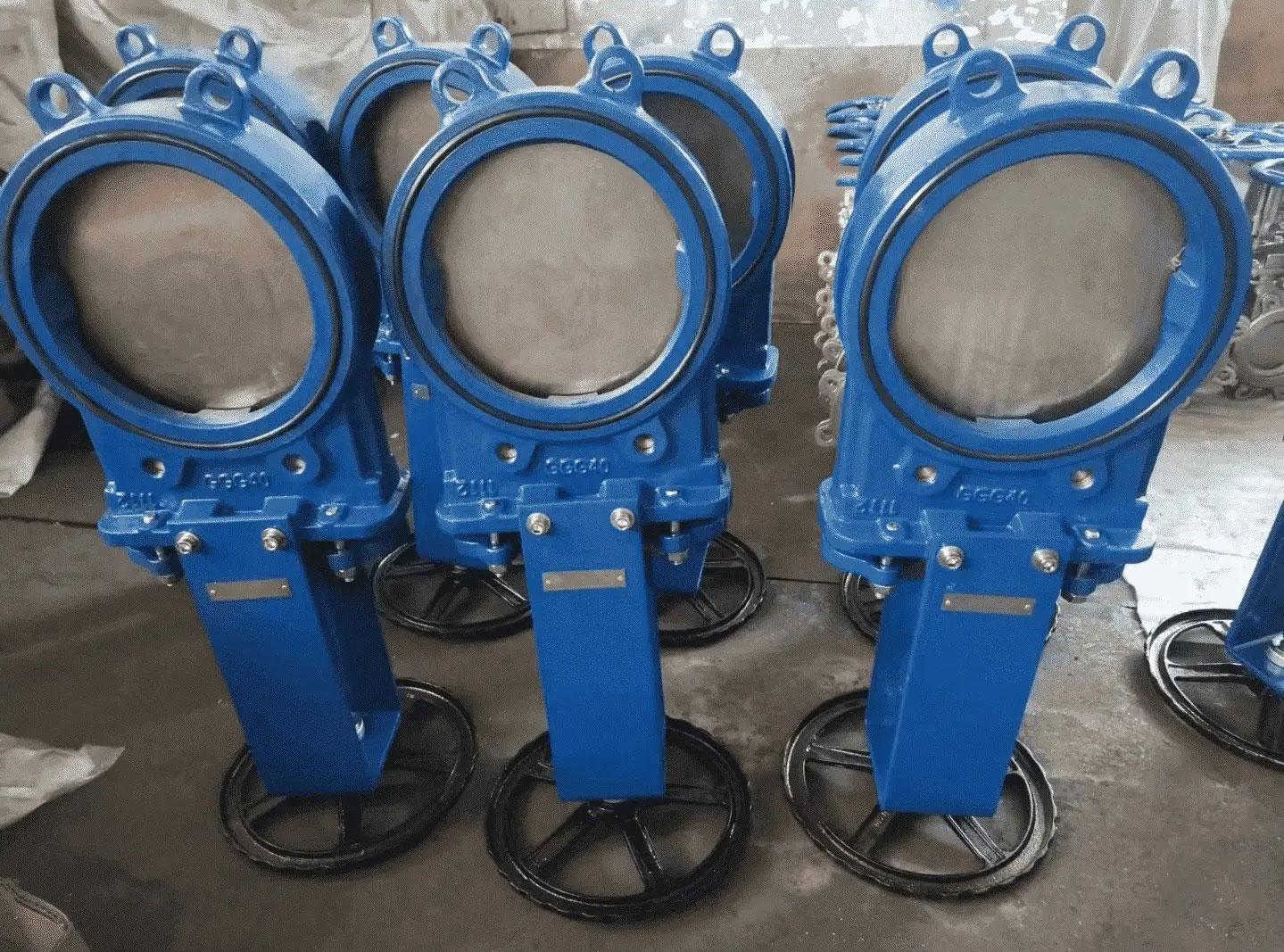

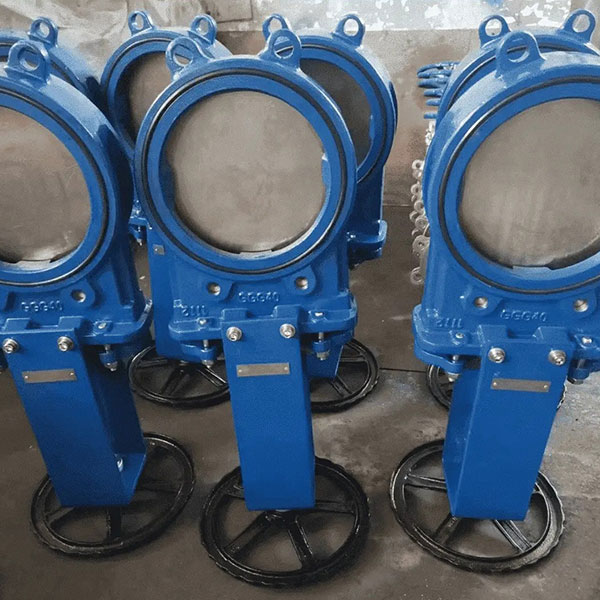

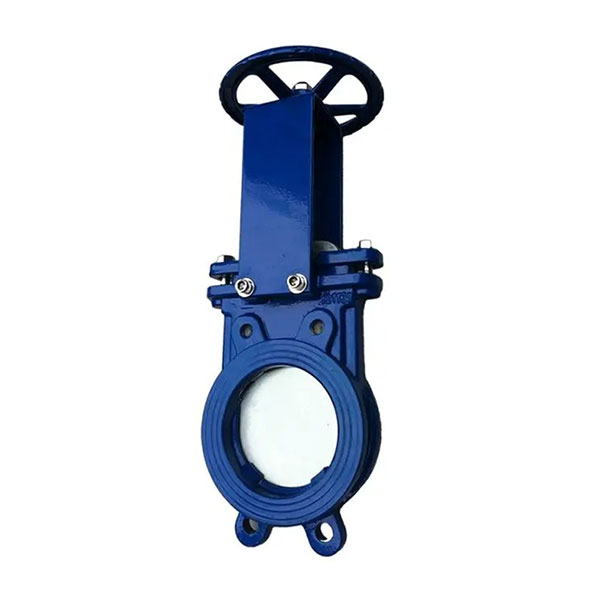

Pindee Valve supply Ductile iron wafer Support Knife Gate Valve is one of the most economical and practical knife gate valves. Our knife gate valves are easy to install and easy to replace, and are widely chosen for different media and conditions. Ductile iron Knife Gate Valve,Depending on the working conditions and customer requirements, the actuator can be manual, electric, pneumatic and hydraulic
PN16 Knife Gate Valve
Size:2”-80”/DN50-DN2000
Pressure Rating:PN10/16, 150LB
Warranty:18 Month
Brand Name:Pindee Valve
Service:OEM
| Size & Pressure Rating & Standard | |
| Size | DN40-DN2000 |
| Pressure Rating | DN50-100 PN16 DN150-200 PN10 DN250-400 PN7 DN450-600 PN5 DN650-750 PN4 DN800-900 PN3 DN1000 PN2 |
| Design Standard | JB/T8691-2013 |
| Flange Standard | GB/T15188.2-94 chart6-7 |
| Test Standard | GB/T13927-2008 |
| Material | |
| Body | Ductile iron; WCB; CF8; CF8M; 2205; 2507 |
| Disc | SS304; SS316; 2205; 2507; 1.4529 |
| Stem/Shaft | SS410/420/416; SS431; SS304; Monel |
| Seat | tainless Steel+STL EPDM (120°C) /Viton(200°C)/PTFE(200°C) /NBR(90°C) |
| Bushing | PTFE, Bronze |
| O Ring | NBR, EPDM, FKM |
| Actuator | Gear Box, Electric Actuator, Pneumatic Actuator |
