Product Description
Pindee valve is one of the biggest manufacture of Brass Threaded Gate Valve which are mainly used in municipal building construction, the main materials are brass gate valves.
Pindee valve is Brass Gate Valve Manufacture sold annually in large quantities to Southeast Asia, Africa, and South America. High quality and high quality service have been recognized by customers. We have a professional sales team to provide you with professional Threaded Gate Valve product knowledge.
Standards&Features:

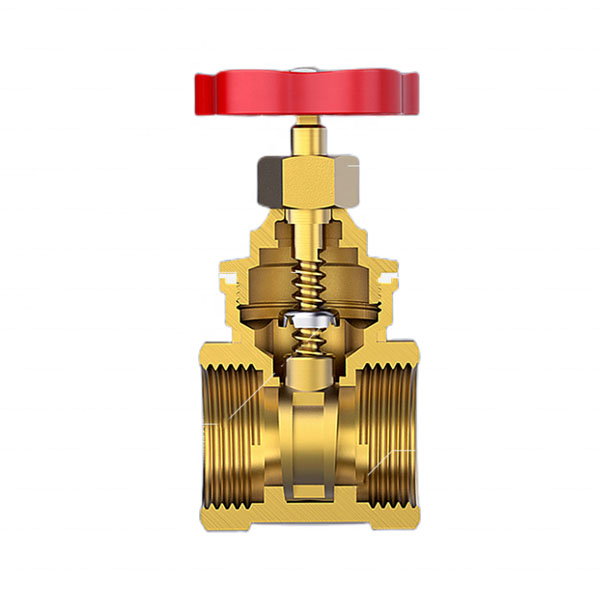

The opening and closing part of the gate valve is the gate, and the movement direction of the gate is perpendicular to the direction of the fluid. The gate valve can only be fully opened and fully closed, and cannot be adjusted or throttled.

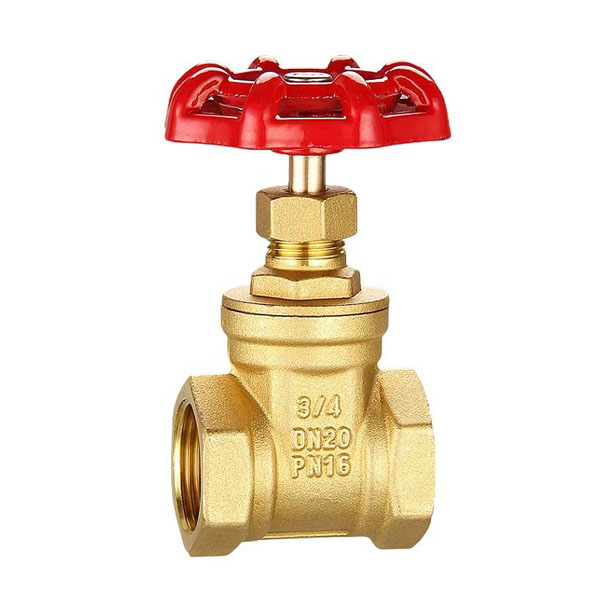

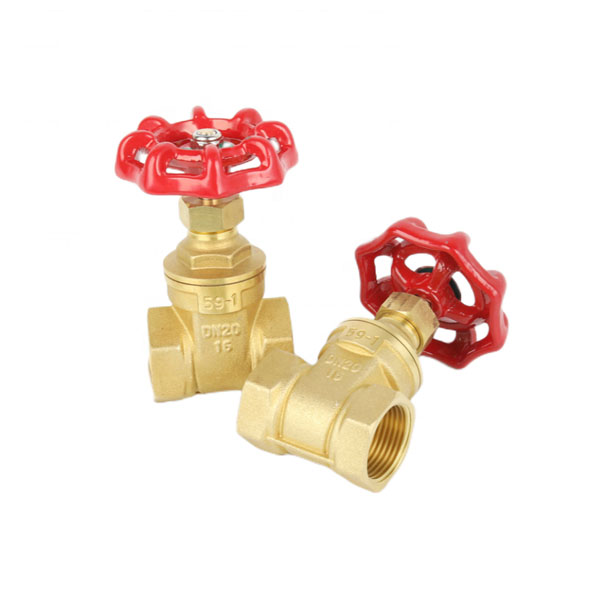

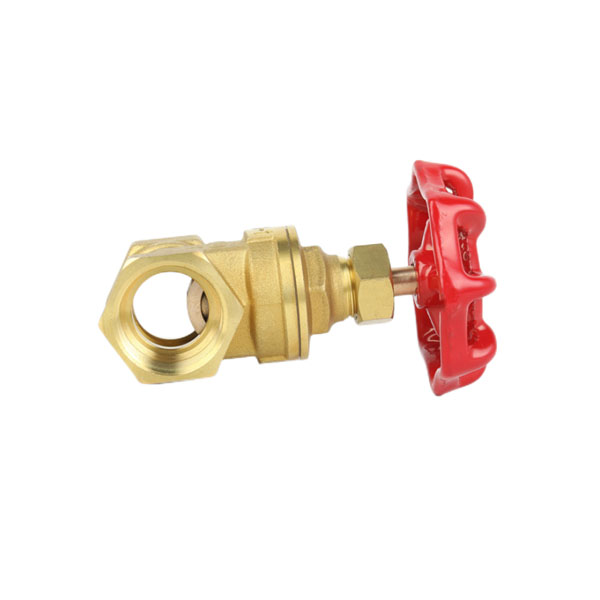

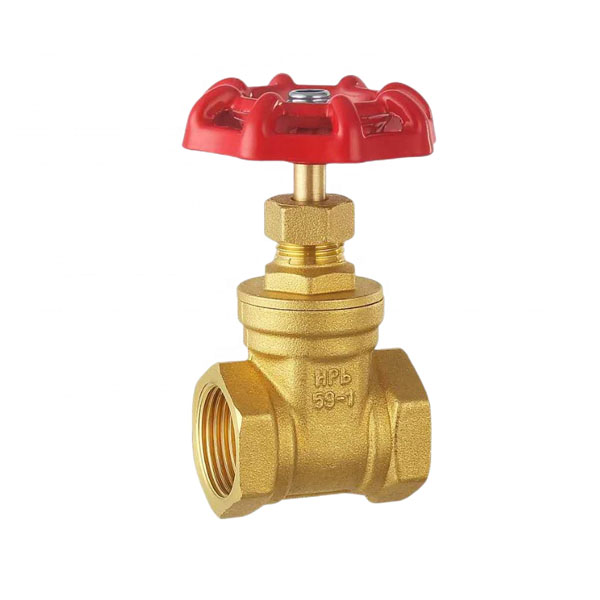

BSP Threaded Brass Gate Valve.
Brass body with a metal seat and PTFE gland.
0-16 BAR pressure range with media temperatures from -20°C to 120°C.
Great for a wide range of gases and liquids.
Application:

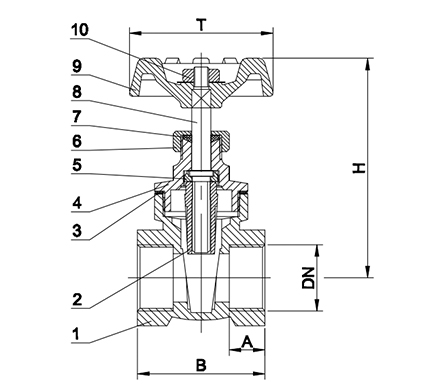

Technical parameters:
Item | Part | Material |
1 | Body | Brass |
2 | Disc | Brass |
3 | Seal | PTFE |
4 | Cap | Brass |
5 | Lock Nut | Brass |
6 | Cap | Brass |
7 | Seat | PTFE |
8 | Stem | Brass |
9 | Handle | Steel |
10 | Screw | Steel |

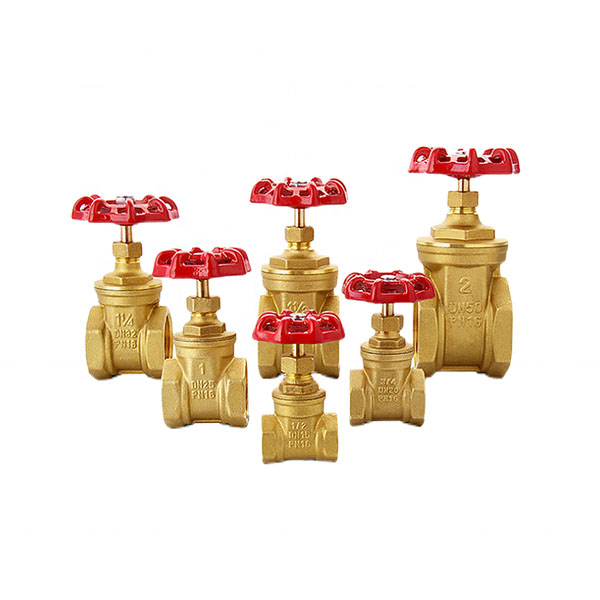

Pindee valve mufacture brass threaded gate valve seires
Pindee Valve Packing
