Product Description

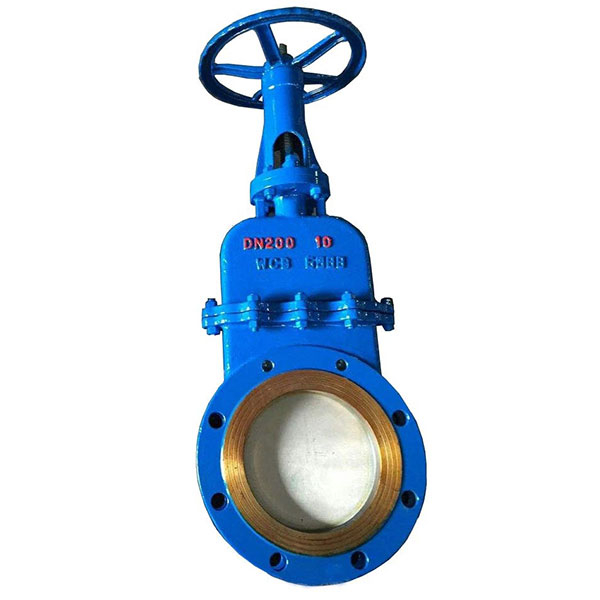

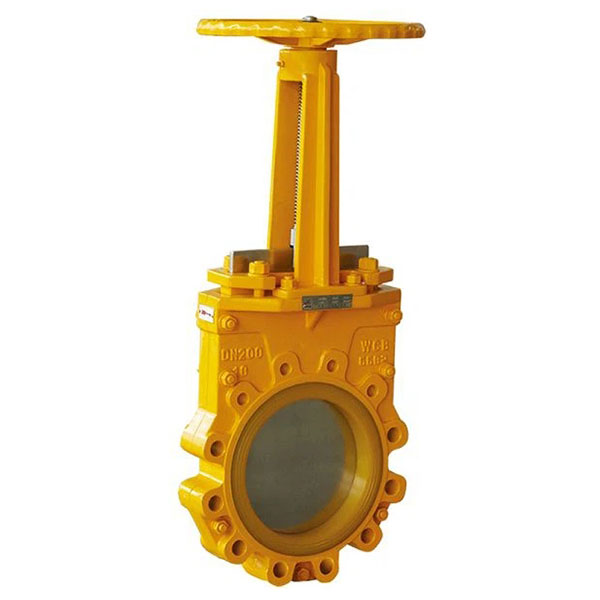

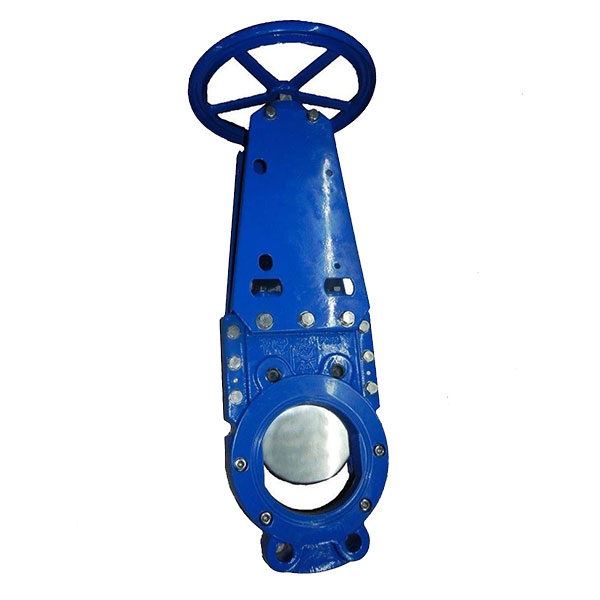

Introduction of Manual slurry valve:
Manual slurry valve adopts mounted structure, which reduces the connecting bolt of valve body under high pressure and large diameter condition, enhances the reliability of valve and overcomes the influence of system weight on normal operation.
Application:
Manual slurry valve is widely used in coal chemical industry, petrochemical industry, rubber, paper-making, pharmaceutical and other pipelines as the medium of shunting confluence or flow switch device.
Description:
Product features:

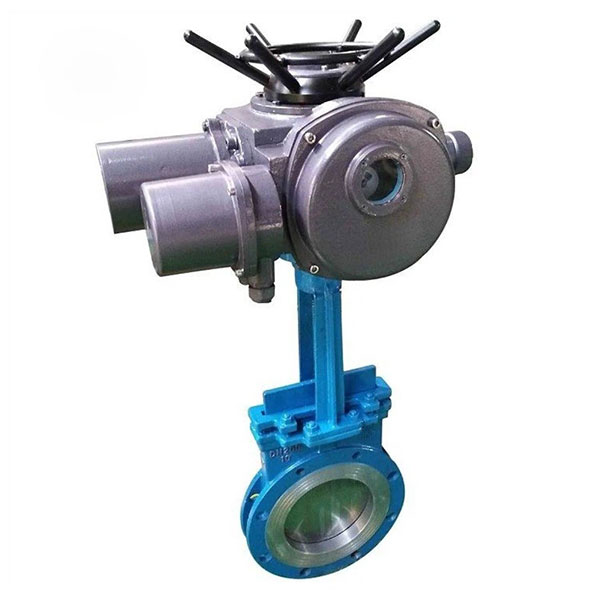

1. Manual slurry valve adopts manual, pneumatic, electric, electro-hydraulic push rod drive, large thrust, balanced operation without impact, overload protection perfect and reliable.
2. Manual slurry valve possess accurate stroke control, tight closure without leakage, and can be locked in any position.
3 Manual slurry valve can be nearby as well as remote control, and participates in the system control.
4 With stronger rigidity of the gate, Manual slurry valve is operated in the guide groove, no jam deformation.
5 Manual slurry valve adopts the advanced combined gasket and can ensure good sealing performance.
6 Customers Users could choose the appropriate Angle of installation according to diverse requirements.
7 According to the actual space needs of users, Manual slurry valve adopts the corresponding type of electro-hydraulic push rod (push rod type has parallel type, right Angle type and separated type).
Specification：
Valve Size: | 2"-32" |
Pressure Class: | 125LB-150LB(PN6-PN16) |
Matierials: | GGG40,WCB,CF8,CF8M,CF3,CF3M,F55, F53,2205 |
Design and Manufacturing Standards: | JB/T8691-2013 |
Face to Face Standards: | GB/T15188.2-94 chart6-7 |
Flange Dimension Standards: | GB/T9113.1-2010 |
Pressure Test Standards: | GB/T13927-2008 |
Test Standard | DN50-DN100 16bar DN125-DN200 10bar DN250-DN400 7bar DN450-DN550 5bar DN600-DN700 3bar DN800-DN900 2bar DN1000-DN1400 1bar |
Quality/Product Certifications： | CE、ACS、WRAS、TS... |
Valve operator options | Hand wheel drive, sprocket, electric, pneumatic, hydraulic, bevel gear, electric control hydraulic and gas hydraulic, etc |
Process Connection Types | Wafer Type,Flange Type. |
Applicable medium | Soft seal is suitable for mud, urban sewage treatment, sugar factory, powder, paper making, medicine, chemical and other oil products; Metal hard seal is suitable for power plant coal preparation, slag, ore powder, slag, slag and other solid media. |
