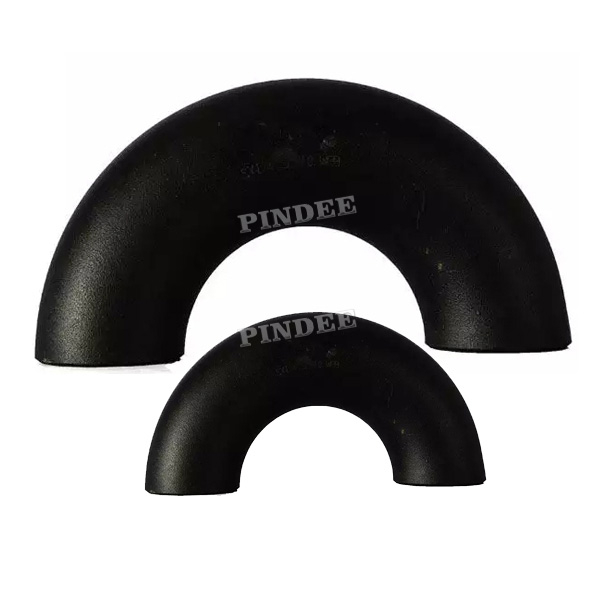

180° Elbow Return Black Paint Carbon Steel Fittings

Carbon Steel Buttweld Fittings
Material：A234-WPB.A420-WPL6.A234-WP11,A234-WP12, A234-WP22, A234-WP5, A860 WHPY 42/52/60/65/70/80, carbon steel, alloy steel
Type: Elbow 90/45/180 degree long radiu/short radius, tee, concentric reducer, eccentric reducer, cap, cross
Size:1/2"-72"（DN15-DN1800）
Standard: ANSI. JIS. DIN GB/T12459, ASME B16.9
Wall thickness:Sch10-Sch160、XXS、XS、STD
Connection:welding,threaded, socket welded
Surface Treatment:Rust-proof oil, black painted or as per customers’ requirement
Packaging:Wooden Cases or wooden pallet or as per customers requirement
Applications range: Petroleum, chemical, power, gas, metallurgy, shipbuilding, construction, etc

Availability:

Quantity:



Inquire

Product Description

Product Description

The 180° Return elbow is a type of pipe fitting that can change the flow direction of liquid or gas in the pipe system. Purpose: Connect two pipes with the same or different nominal diameters to make a 180° turn of the pipeline

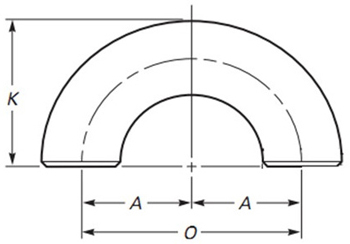

Return-Black-Paint-Seamless-Buttweld-drawing

Return Black Paint Seamless Buttweld Dimensions

Size	O.D	O	K	Size	O.D	O	K
1/2"	21.3	76	48	6"	168.3	457	313
3/4"	26.7	76	51	8"	219.1	610	414
1"	33.4	76	56	10"	273	762	518
1 1/4"	42.2	95	70	12"	323.8	914	619
1 1/2"	48.3	114	83	14"	355.6	1067	711
2"	60.3	152	106	16"	406.4	1219	813
2 1/2"	73	190	132	18"	457	1372	914
3"	88.9	229	159	20"	508	1524	1016
3 1/2"	101.6	267	184	22"	559	1676	1118
4"	114.3	305	210	24"	610	1829	1219
5"	141.3	381	262

Pindee Butt weld Carbon Steel Fittings

OD	1/2”-48”
Type	Long Radius, Short Radius, Reducing Butt Weld Steel Elbow
Standard	B16.9,MSS-SP-43,B16.11, MSS-SP-97,DIN2605-2617
Material	Carbon Steel: ASTM A234 WPB,WPC, ASTM,ASME A860 WPHY 42,WPHY 46, WPHY 52, WPH 60, WPHY 65, WPHY 70
	Low Temperature: A420 LF1,LF3, LF6, WPL3, WPL6, WPL9
	Alloy Steel: ASTM A234 WP1,WP2,WP5,WP9,WP11,WP12,WP22,WP91,WP92
	Stainless Steel: ASTM A403 WP304,WP304L,WP304H,WP310S,WP316,WP316L,WP321,WP321H,WP904L.
	Duplex Steel: A815,S31803,S32750,S32760,S31254,S34565,S31500,S32304
	Non Ferrous Alloy: ASTM B366
Surface	Zinc-plated, Hot dipped galvanized, Painting, Oiled lightly and etc
Usage	The products are widely applied in such fields as petrochemical industry, fertilizer, nuclear power, boiler,ship,environmental protection, aviation, pulp and paper, food, medicine and etc
Equipment and Inspection	Portable Spectrometer, Brinell’s Machine, Ultrasonic Flaw Detector, Portable Sclerometer
We have gotten the approval of Takreer, Borouge, NPCC, FERTIL, NAKHEEL, ADNOC - UAE and Aramco - KSA.
We can provide MTC as per EN10204 3.1, and also can do EN10204 3.2 certificate as per your requirement.
