ASTM A234 Pipe Cap Black Paint Carbon Steel BW Fittings

Carbon Steel Buttweld Fittings
Material：A234-WPB.A420-WPL6.A234-WP11,A234-WP12, A234-WP22, A234-WP5, A860 WHPY 42/52/60/65/70/80, carbon steel, alloy steel
Type: Elbow 90/45/180 degree long radiu/short radius, tee, concentric reducer, eccentric reducer, cap, cross
Size:1/2"-72"（DN15-DN1800）
Standard: ANSI. JIS. DIN GB/T12459, ASME B16.9
Wall thickness:Sch10-Sch160、XXS、XS、STD
Connection:welding,threaded, socket welded
Surface Treatment:Rust-proof oil, black painted or as per customers’ requirement
Packaging:Wooden Cases or wooden pallet or as per customers requirement
Applications range: Petroleum, chemical, power, gas, metallurgy, shipbuilding, construction, etc

Availability:

Quantity:



Inquire

Product Description

Product Description

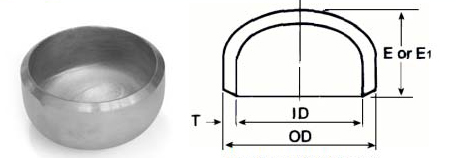

Stainless-Steel-Butt-Weld-End-Cap

Nominal Pipe Size	Outside Diameter O.D.	Wall Thickness				Length
Nominal Pipe Size	Outside Diameter O.D.	5S	10S	40S	80S	E
1/2	0.840	0.065	0.083	0.109	0.147	1.00
3/4	1.050	0.065	0.083	0.113	0.154	1.00
1	1.315	0.065	0.109	0.133	0.179	1.50
1-1/4	1.660	0.065	0.109	0.140	0.191	1.50
1-1/2	1.900	0.065	0.109	0.145	0.200	1.50
2	2.375	0.065	0.109	0.154	0.218	1.50
2-1/2	2.875	0.083	0.120	0.203	0.276	1.50
3	3.500	0.083	0.120	0.216	0.300	2.00
3-1/2	4.000	0.083	0.120	0.226	0.318	2.50
4	4.500	0.083	0.120	0.237	0.337	2.50
5	5.563	0.109	0.134	0.258	0.375	3.00
6	6.625	0.109	0.134	0.280	0.432	3.50
8	8.625	0.109	0.148	0.322	0.500	4.00
10	10.750	0.134	0.165	0.365	0.500	5.00
12	12.750	0.156	0.180	0.375	0.500	6.00
14	14.000	0.156	0.188	0.375	0.500	6.50
16	16.000	0.165	0.188	0.375	0.500	7.00
18	18.000	0.165	0.188	0.375	0.500	8.00
20	20.000	0.188	0.218	0.375	0.500	9.00
22	22.000	0.188	0.218	-	-	10.00
24	24.000	0.218	0.250	0.375	0.500	10.50
30	30.000	0.250	0.312	-	-	10.50

Pindee Butt weld Carbon Steel Fittings

Diameter Range	1/2”-48”
Type	Long Radius, Short Radius, Reducing Butt Weld Steel Elbow
Standard	B16.9,MSS-SP-43,B16.11, MSS-SP-97,DIN2605-2617
Material	Carbon Steel: ASTM A234 WPB,WPC, ASTM,ASME A860 WPHY 42,WPHY 46, WPHY 52, WPH 60, WPHY 65, WPHY 70
	Low Temperature: A420 LF1,LF3, LF6, WPL3, WPL6, WPL9
	Alloy Steel: ASTM A234 WP1,WP2,WP5,WP9,WP11,WP12,WP22,WP91,WP92
	Stainless Steel: ASTM A403 WP304,WP304L,WP304H,WP310S,WP316,WP316L,WP321,WP321H,WP904L.
	Duplex Steel: A815,S31803,S32750,S32760,S31254,S34565,S31500,S32304
	Non Ferrous Alloy: ASTM B366
Surface	Zinc-plated, Hot dipped galvanized, Painting, Oiled lightly and etc
Usage	The products are widely applied in such fields as petrochemical industry, fertilizer, nuclear power, boiler,ship,environmental protection, aviation, pulp and paper, food, medicine and etc
Equipment and Inspection	Portable Spectrometer, Brinell’s Machine, Ultrasonic Flaw Detector, Portable Sclerometer
We have gotten the approval of Takreer, Borouge, NPCC, FERTIL, NAKHEEL, ADNOC - UAE and Aramco - KSA.
We can provide MTC as per EN10204 3.1, and also can do EN10204 3.2 certificate as per your requirement.
