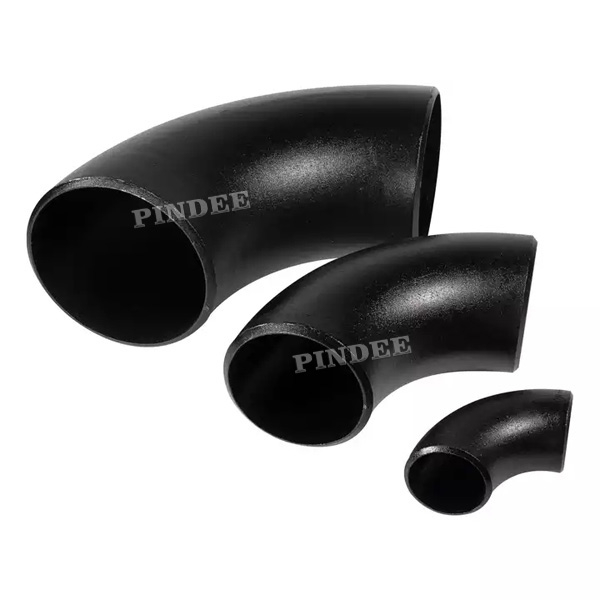

ASTM A234 90 Degree Elbow Black Paint Carbon Steel BW Fittings

Carbon Steel Buttweld Fittings
Material：A234-WPB.A420-WPL6.A234-WP11,A234-WP12, A234-WP22, A234-WP5, A860 WHPY 42/52/60/65/70/80, carbon steel, alloy steel
Type: Elbow 90/45/180 degree long radiu/short radius, tee, concentric reducer, eccentric reducer, cap, cross
Size:1/2"-72"（DN15-DN1800）
Standard: ANSI. JIS. DIN GB/T12459, ASME B16.9
Wall thickness:Sch10-Sch160、XXS、XS、STD
Connection:welding,threaded, socket welded
Surface Treatment:Rust-proof oil, black painted or as per customers’ requirement
Packaging:Wooden Cases or wooden pallet or as per customers requirement
Applications range: Petroleum, chemical, power, gas, metallurgy, shipbuilding, construction, etc

Availability:

Quantity:



Inquire

Product Description

Product Description

ELBOW-45-DEG drawing

Nominal Pipe Size	O.D.	Center to End			5S
		Long		Short	T	I.D.
		A	B	A	T	I.D.
1/2	0.840	1.50	0.62	-	0.065	0.710
3/4	1.050	1.05	0.75	-	0.065	0.920
1	1.315	1.50	0.88	1.00	0.065	1.185
1-1/4	1.660	1.88	1.00	1.25	0.065	1.530
1-1/2	1.900	2.25	1.12	1.50	0.065	1.770
2	2.375	3.00	1.38	2.00	0.065	2.245
2-1/2	2.875	3.75	1.75	2.50	0.083	2.709
3	3.500	4.25	2.00	3.00	0.083	3.334
3-1/2	4.000	5.25	2.25	3.50	0.083	3.834
4	4.500	6.00	2.50	4.00	0.083	4.334
5	5.563	7.50	3.12	5.00	0.109	5.345
6	6.625	9.00	3.75	6.00	0.109	6.407
8	8.625	12.00	5.00	8.00	0.109	8.407
10	10.750	15.00	6.25	10.00	0.134	10.482
12	12.750	18.00	7.50	12.00	0.156	12.438
14	14.000	21.00	8.75	14.00	0.156	13.688
16	16.000	24.00	10.00	16.00	0.165	15.670
18	18.000	27.00	11.25	18.00	0.165	17.670
20	20.000	30.00	12.50	20.00	0.188	19.624
22	22.000	33.00	13.50	22.00	0.188	21.624
24	24.000	36.00	15.00	24.00	0.218	23.564
30	30.000	45.00	18.50	-	0.250	29.500

Nominal Pipe Size	10S		40S		80S
Nominal Pipe Size	T	I.D.	T	I.D.	T	I.D.
1/2	0.083	0.674	0.109	0.622	0.147	0.546
3/4	0.083	0.884	0.113	0.824	0.154	0.742
1	0.109	1.097	0.133	1.049	0.179	0.957
1-1/4	0.109	1.442	0.140	1.380	0.191	1.278
1-1/2	0.109	1.682	0.145	1.610	0.200	1.500
2	0.109	2.157	0.154	2.067	0.218	1.939
2-1/2	1.120	2.635	0.203	2.469	0.276	2.323
3	1.120	3.260	0.216	3.068	0.300	2.900
3-1/2	1.120	3.760	0.226	3.548	0.318	3.364
4	1.120	4.260	0.237	4.026	0.337	3.826
5	0.134	5.295	0.258	5.047	0.375	4.813
6	0.134	6.357	0.280	6.065	0.432	5.761
8	0.148	8.329	0.322	7.981	0.500	7.625
10	0.165	10.420	0.365	10.020	0.500	9.750
12	0.180	12.390	0.375	12.000	0.500	11.750
14	0.188	13.624	0.375	13.250	0.500	13.000
16	0.188	15.624	0.375	15.250	0.500	15.000
18	0.188	17.624	0.375	17.250	0.500	17.000
20	0.218	19.564	0.375	19.250	0.500	19.000
22	0.218	21.564	-	-	-	-
24	0.250	23.500	0.375	23.250	0.500	23.000
30	0.312	29.376	-	-	-	-

Pindee Butt weld Carbon Steel Fittings

Diameter Range	1/2”-48”
Type	Long Radius, Short Radius, Reducing Butt Weld Steel Elbow
Standard	B16.9,MSS-SP-43,B16.11, MSS-SP-97,DIN2605-2617
Material	Carbon Steel: ASTM A234 WPB,WPC, ASTM,ASME A860 WPHY 42,WPHY 46, WPHY 52, WPH 60, WPHY 65, WPHY 70
	Low Temperature: A420 LF1,LF3, LF6, WPL3, WPL6, WPL9
	Alloy Steel: ASTM A234 WP1,WP2,WP5,WP9,WP11,WP12,WP22,WP91,WP92
	Stainless Steel: ASTM A403 WP304,WP304L,WP304H,WP310S,WP316,WP316L,WP321,WP321H,WP904L.
	Duplex Steel: A815,S31803,S32750,S32760,S31254,S34565,S31500,S32304
	Non Ferrous Alloy: ASTM B366
Surface	Zinc-plated, Hot dipped galvanized, Painting, Oiled lightly and etc
Usage	The products are widely applied in such fields as petrochemical industry, fertilizer, nuclear power, boiler,ship,environmental protection, aviation, pulp and paper, food, medicine and etc
Equipment and Inspection	Portable Spectrometer, Brinell’s Machine, Ultrasonic Flaw Detector, Portable Sclerometer
We have gotten the approval of Takreer, Borouge, NPCC, FERTIL, NAKHEEL, ADNOC - UAE and Aramco - KSA.
We can provide MTC as per EN10204 3.1, and also can do EN10204 3.2 certificate as per your requirement.
