Product Description

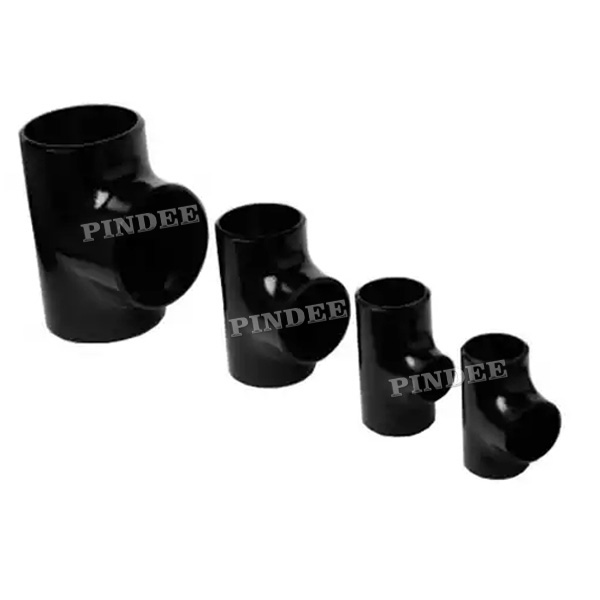

The Equal-diameter Tee is a kind of Tee, and the diameter of the three pipe ends is equal. Equal Tee is widely used in the construction and maintenance of projects in the petrochemical, petroleum and natural gas, liquefied petroleum gas, fertilizer, power plants, nuclear power, shipbuilding, papermaking, pharmaceuticals, food hygiene, urban construction, and other industries.

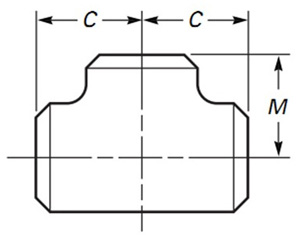

Equal Tee Black Paint Seamless Buttweld Dimensions
| Size | O.D | C | M | Size | O.D | C | M |
| 1/2" | 21.3 | 25 | 25 | 18" | 457 | 343 | 343 |
| 3/4" | 26.7 | 29 | 29 | 20" | 508 | 381 | 381 |
| 1" | 33.4 | 38 | 38 | 22" | 559 | 419 | 419 |
| 1 1/4" | 42.2 | 48 | 48 | 24" | 610 | 432 | 432 |
| 1 1/2" | 48.3 | 57 | 57 | 26" | 660 | 495 | 495 |
| 2" | 60.3 | 64 | 64 | 28" | 711 | 521 | 521 |
| 2 1/2" | 73 | 76 | 76 | 30" | 762 | 559 | 559 |
| 3" | 88.9 | 86 | 86 | 32" | 813 | 597 | 597 |
| 3 1/2" | 101.6 | 95 | 95 | 34" | 964 | 635 | 635 |
| 4" | 114.3 | 105 | 105 | 36" | 914 | 673 | 673 |
| 5" | 141.3 | 124 | 124 | 38" | 965 | 711 | 711 |
| 6" | 168.3 | 143 | 143 | 40" | 1016 | 749 | 749 |
| 8" | 219.1 | 178 | 178 | 42" | 1067 | 762 | 711 |
| 10" | 273 | 216 | 216 | 44" | 1118 | 813 | 762 |
| 12" | 323.8 | 254 | 254 | 46" | 1168 | 851 | 800 |
| 14" | 355.6 | 279 | 279 | 48" | 1219 | 889 | 838 |
| 16" | 406.4 | 305 | 305 | ||||
Pindee Butt weld Carbon Steel Fittings
| Diameter Range | 1/2”-48” |
| Type | Equal Tee and Reducing Tee Seamless or Welded |
| Standard | B16.9,MSS-SP-43,B16.11, MSS-SP-97,DIN2605-2617 |
| Material | Carbon Steel: ASTM A234 WPB,WPC, ASTM,ASME A860 WPHY 42,WPHY 46, WPHY 52, WPH 60, WPHY 65, WPHY 70 |
| Low Temperature: A420 LF1,LF3, LF6, WPL3, WPL6, WPL9 | |
| Alloy Steel: ASTM A234 WP1,WP2,WP5,WP9,WP11,WP12,WP22,WP91,WP92 | |
| Stainless Steel: ASTM A403 WP304,WP304L,WP304H,WP310S,WP316,WP316L,WP321,WP321H,WP904L. | |
| Duplex Steel: A815,S31803,S32750,S32760,S31254,S34565,S31500,S32304 | |
| Non Ferrous Alloy: ASTM B366 | |
| Surface | Zinc-plated, Hot dipped galvanized, Painting, Oiled lightly and etc |
| Usage | The products are widely applied in such fields as petrochemical industry, fertilizer, nuclear power, boiler,ship,environmental protection, aviation, pulp and paper, food, medicine and etc |
| Equipment and Inspection | Portable Spectrometer, Brinell’s Machine, Ultrasonic Flaw Detector, Portable Sclerometer |
| We have gotten the approval of Takreer, Borouge, NPCC, FERTIL, NAKHEEL, ADNOC - UAE and Aramco - KSA. | |
| We can provide MTC as per EN10204 3.1, and also can do EN10204 3.2 certificate as per your requirement. | |
Manufacture
Pindee Fittings Popular Carbon Steel Fittings as below
Packaging and Shipping
