Product Description
The Center point of the circle at both ends of the tube is not on the same straight line is called concentric reducers. The Concentric reducer (reducing pipe) is a pipe fitting used for the diameter of the pipe. The commonly used forming process is reducing diameter pressing, expanding diameter pressing or reducing diameter plus expanding diameter pressing, and stamping forming can also be used for reducing diameter pipes of certain specifications.

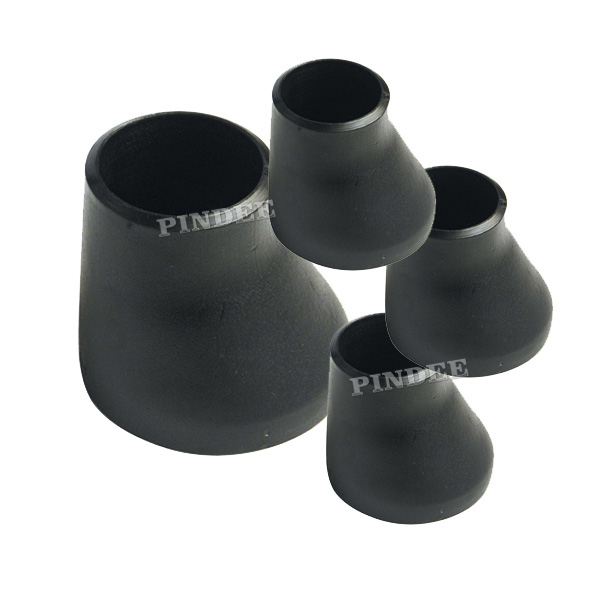

Eccentric Reducer Black Paint Seamless Buttweld Dimensions
| Size | O.D at Bevel | H | Size | O.D at Bevel | H | ||
| Large End | Small End | Large End | Small End | ||||
| 3/4"x1/2" | 26.7 | 21.3 | 38 | 5x4" | 141.3 | 114.3 | 127 |
| 3/4"x3/8" | 26.7 | 17.3 | 38 | 5x3 1/2" | 141.3 | 101.6 | 127 |
| 1x3/4" | 33.4 | 16.7 | 51 | 5x3" | 141.3 | 88.9 | 127 |
| 1x1/2" | 33.4 | 21.3 | 51 | 5x2 1/2" | 141.3 | 73 | 127 |
| 1 1/4x1" | 42.2 | 33.4 | 51 | 5x2" | 141.3 | 60.3 | 127 |
| 1 1/4x3/4" | 42.2 | 26.7 | 51 | 6x5" | 168.3 | 141.3 | 140 |
| 1 1/4x1/2" | 42.2 | 21.3 | 51 | 6x4" | 168.3 | 114.3 | 140 |
| 1 1/2x1 1/4" | 48.3 | 42.2 | 64 | 6x3 1/2" | 168.3 | 101.6 | 140 |
| 1 1/2x1" | 48.3 | 33.4 | 64 | 6x3" | 168.3 | 88.9 | 140 |
| 1 1/2x3/4" | 48.3 | 26.7 | 64 | 6x2 1/2" | 168.3 | 73 | 140 |
| 1 1/2x1/2" | 48.3 | 21.3 | 64 | 8x6" | 219.1 | 168.3 | 152 |
| 2x1 1/2" | 60.3 | 48.3 | 76 | 8x5" | 219.1 | 141.3 | 152 |
| 2x1 1/4" | 60.3 | 42.2 | 76 | 8x4" | 219.1 | 114 | 152 |
| 2x1" | 60.3 | 33.4 | 76 | 8x3 1/2" | 219.1 | 101.6 | 152 |
| 2x3/4" | 60.3 | 26.7 | 76 | 10x8" | 273 | 219.1 | 178 |
| 2 1/2x2" | 73 | 60.3 | 89 | 10x6" | 273 | 168.3 | 178 |
| 2 1/2x1 1/2" | 73 | 48.3 | 89 | 10x5" | 273 | 141.3 | 178 |
| 2 1/2x1 1/4" | 73 | 42.2 | 89 | 10x4" | 273 | 114.3 | 178 |
| 2 1/2x1" | 73 | 33.4 | 89 | 12x10" | 323.8 | 273 | 203 |
| 3x2 1/2" | 88.9 | 73 | 89 | 12x8" | 323.8 | 219.1 | 203 |
| 3x2" | 88.9 | 60.3 | 89 | 12x6" | 323.8 | 168.3 | 203 |
| 3x1 1/2" | 88.9 | 48.3 | 89 | 12x5" | 323.8 | 141.3 | 203 |
| 3x1 1/4" | 88.9 | 42.2 | 89 | 14x12" | 355.6 | 323.8 | 330 |
| 3 1/2x3" | 101.6 | 88.9 | 102 | 14x10" | 355.6 | 273 | 330 |
| 3 1/2x2 1/2" | 101.6 | 73 | 102 | 14x8" | 355.6 | 219.1 | 330 |
| 3 1/2x2" | 101.6 | 60.3 | 102 | 14x6" | 355.6 | 168.3 | 330 |
| 3 1/2x1 1/2" | 101.6 | 48.3 | 102 | 16x14" | 406.4 | 355.6 | 356 |
| 3 1/2x1 1/4" | 101.6 | 42.2 | 102 | 16x12" | 406.4 | 323.8 | 356 |
| 4x3 1/2" | 114.3 | 101.6 | 102 | 16x10" | 406.4 | 273 | 356 |
| 4x3" | 114.3 | 88.9 | 102 | 16x8" | 406.4 | 219.1 | 356 |
| 4x2 1/2" | 114.3 | 73 | 102 | 18x16" | 457 | 406.4 | 381 |
| 4x2" | 114.3 | 60.3 | 102 | 18x14" | 457 | 355.6 | 381 |
| 4x1 1/2" | 114.3 | 48.3 | 102 | 18x12" | 457 | 323.8 | 381 |
| 18x10" | 457 | 273 | 381 | ||||
Pindee Butt weld Carbon Steel Fittings
| Diameter Range | 1/2”-48” |
| Type | Eccentric Reducer, Concentric Reducer Seamless or Welded |
| Standard | B16.9,MSS-SP-43,B16.11, MSS-SP-97,DIN2605-2617 |
| Material | Carbon Steel: ASTM A234 WPB,WPC, ASTM,ASME A860 WPHY 42,WPHY 46, WPHY 52, WPH 60, WPHY 65, WPHY 70 |
| Low Temperature: A420 LF1,LF3, LF6, WPL3, WPL6, WPL9 | |
| Alloy Steel: ASTM A234 WP1,WP2,WP5,WP9,WP11,WP12,WP22,WP91,WP92 | |
| Stainless Steel: ASTM A403 WP304,WP304L,WP304H,WP310S,WP316,WP316L,WP321,WP321H,WP904L. | |
| Duplex Steel: A815,S31803,S32750,S32760,S31254,S34565,S31500,S32304 | |
| Non Ferrous Alloy: ASTM B366 | |
| Surface | Zinc-plated, Hot dipped galvanized, Painting, Oiled lightly and etc |
| Usage | The products are widely applied in such fields as petrochemical industry, fertilizer, nuclear power, boiler,ship,environmental protection, aviation, pulp and paper, food, medicine and etc |
| Equipment and Inspection | Portable Spectrometer, Brinell’s Machine, Ultrasonic Flaw Detector, Portable Sclerometer |
| We have gotten the approval of Takreer, Borouge, NPCC, FERTIL, NAKHEEL, ADNOC - UAE and Aramco - KSA. | |
| We can provide MTC as per EN10204 3.1, and also can do EN10204 3.2 certificate as per your requirement. | |
Manufacture
Pindee Fittings Popular Carbon Steel Fittings as below
Packaging and Shipping
