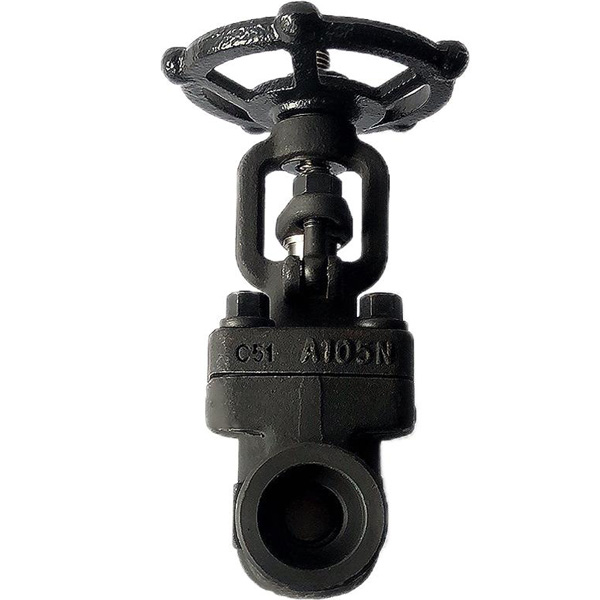

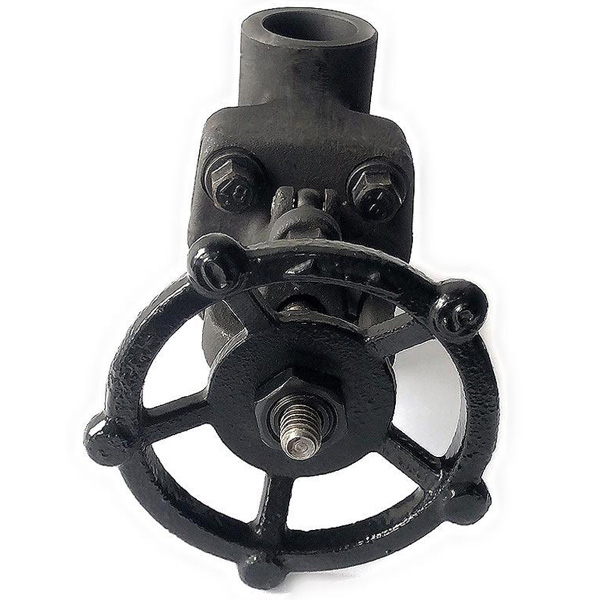

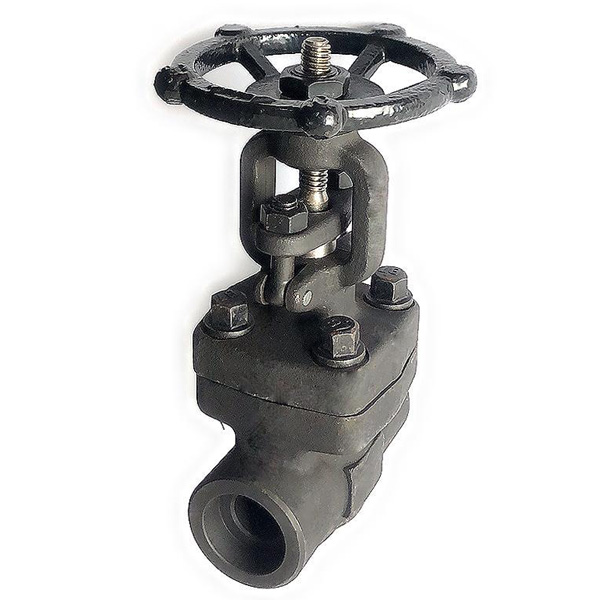

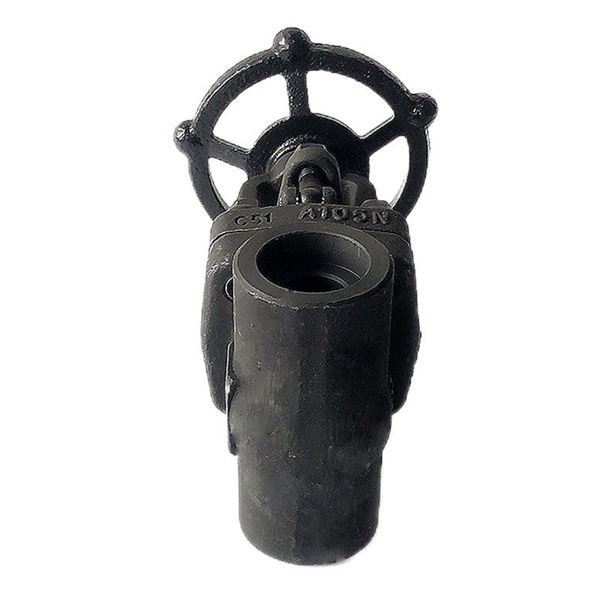

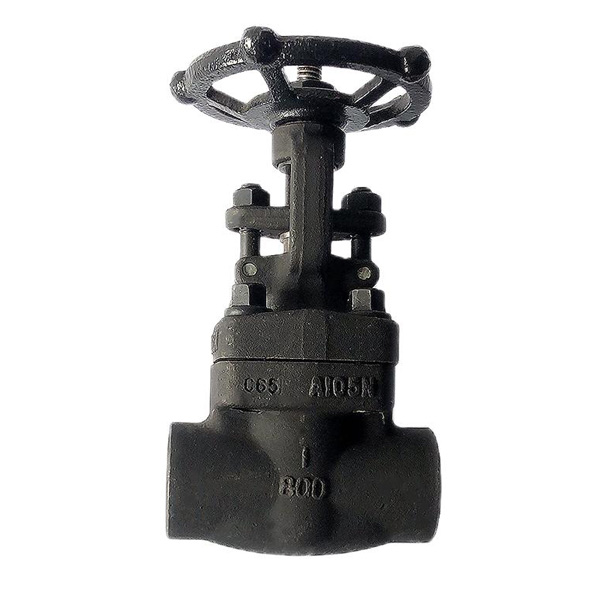

API 602 Forged Steel Gate Valve

The API 602 Forged Steel Gate Valve is designed for high-pressure and high-temperature applications. It is designed to handle a wide range of fluids, such as water, oil, steam, and gas. It is manufactured in accordance with the American Petroleum Institute (API) 602 standards. It is made of high-quality forged steel, which provides excellent strength and resistance to wear and corrosion. The valve is available in various sizes, ranging from 1/2" to 2", and pressure ratings from Class 800 to Class 2500.

The API 602 Forged Steel Gate Valve manufacture from PINDEE VALVE,which this kind of features a bolted bonnet design, which allows for easy maintenance and repair. It also has a rising stem design that provides a clear indication of the valve position. The gate is wedge-shaped, which ensures a tight seal and prevents leakage. The valve also has a backseat design that allows for replacement of the packing while the valve is in service.

At PINDEE VALVE, we are committed to providing our customers with the best products and services. We offer competitive pricing, fast delivery, and excellent after-sales support for the API 602 Forged Steel Gate Valve. Contact us today to learn more about our API 602 Forged Steel Gate Valves and how we can help you with your valve needs.

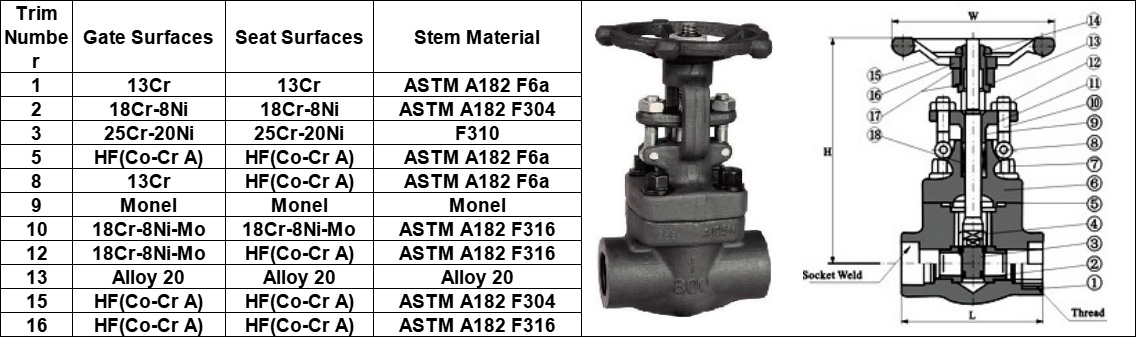

According to API 602,trim items include the stem, wedge/ gate seating surfaces, seating surfaces of body or seat ring. Trim No.1 and No.2 now are obsolete.

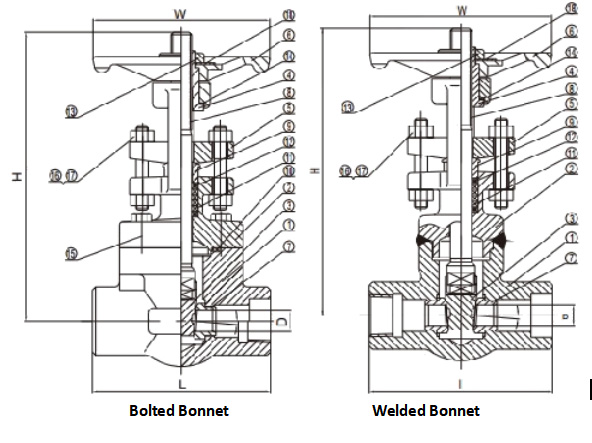

Technical Drawing

Class 150~Class 800, Class 1500 Bolted Bonnet, OS&Y BW/Threaded. Full Port or Regular Port.

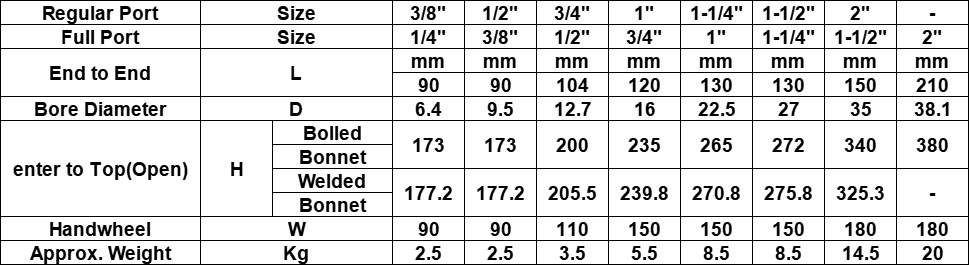

BB/WB 800LBS

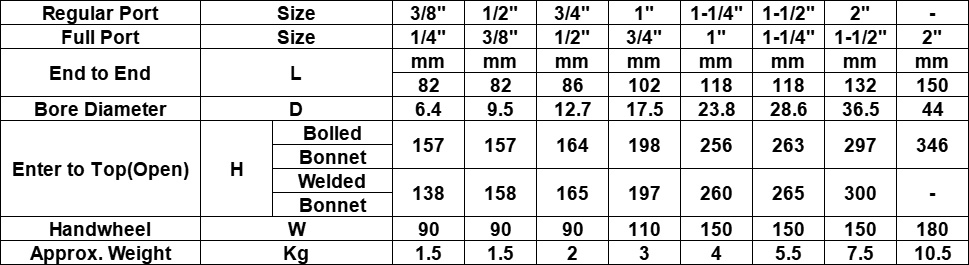

BB/WB 1500LBS

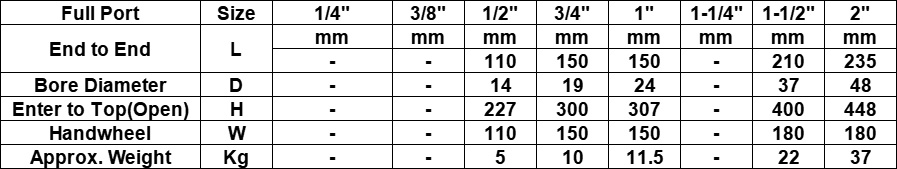

RTJ 1500LBS
