Product Description

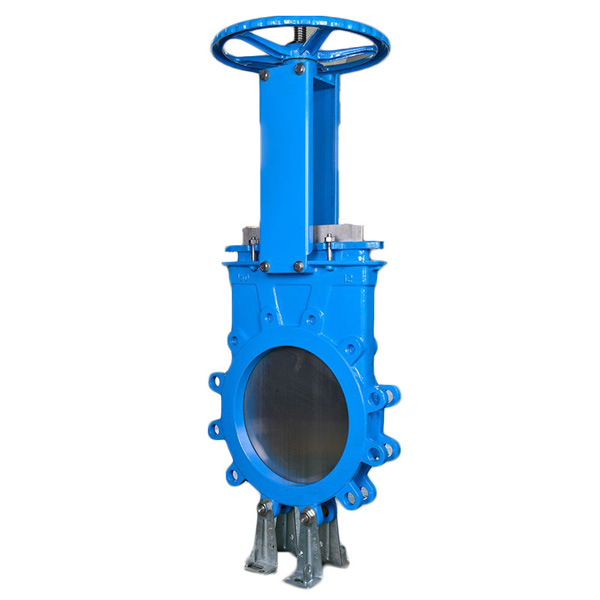

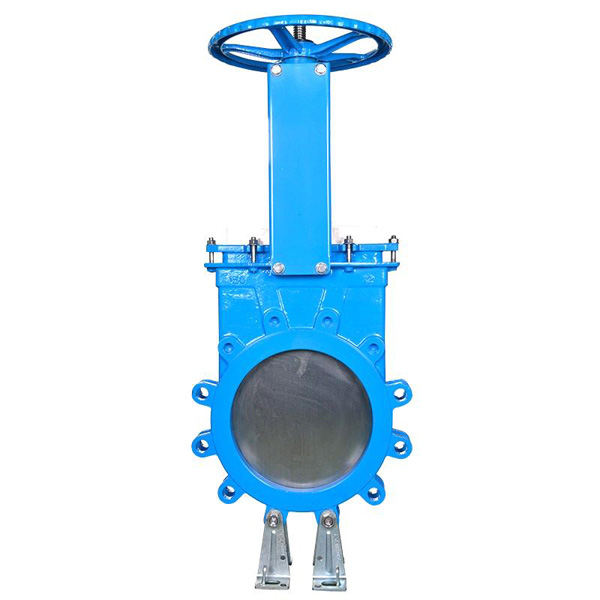

Lugged knife gate valve made by PINDEE VAVLE, its opening and closing part is a gate, the movement direction of the gate is perpendicular to the direction ofthe fuid, and the medium is cut by a blade-shaped gate that can cut fiber materials.Bi-directional or unidirectional design, Resilientseat or metal seat, Non-rising stem or rising stem optional.
Seat Materials: NBR, EPDM, VITON,PTFE
Disc Materials: Ductile lron, WCB,CF8,CF8M
Stem Materials: 2Cr13,SS410,SS304,SS316
End Connection: Wafer
operate: Manual, Worm gear, Pneumatic, Electric-Motorized
Lugged Knife Gate Valve manufacture Introduction and Material
The Lugged Knife Gate Valve is commonly used in industries such as pulp and paper, mining, wastewater treatment, and chemical processing. The Lugged Knife Gate Valve is designed with a sharp-edged gate that cuts through the fluid and seals tightly against the valve seat, preventing any leakage. It is also equipped with a lugged body that allows it to be bolted directly onto pipelines, making installation and maintenance much easier. The Lugged Knife Gate Valve size ranging from 2" to 24", and work pressure is 150PSI.
The Lugged Knife Gate Valve body is made of cast iron or stainless steel depend on the customers' need, which provides excellent corrosion resistance and durability. The gate is made of stainless steel 304 or 316, the seat is made of resilient materials such as EPDM or Nitrile, which provide excellent sealing capabilities.
If you are looking for reliable and high-quality Lugged Knife Gate Valves, then PINDEE VALVE is the perfect place to go. We are the leading manufacturer and supplier of industrial valves, including gate valves, check valves, ball valves, and butterfly valves. We have a wide range of products that are designed to meet the needs of different industries. If you are looking for high-quality Lugged Knife Gate Valves, then PINDEE VALVE is the perfect place to go. Contact them today to learn more about their products and services.
Lugged Knife Gate Valve dimension
Lugged Knife Gate Valve Inspection

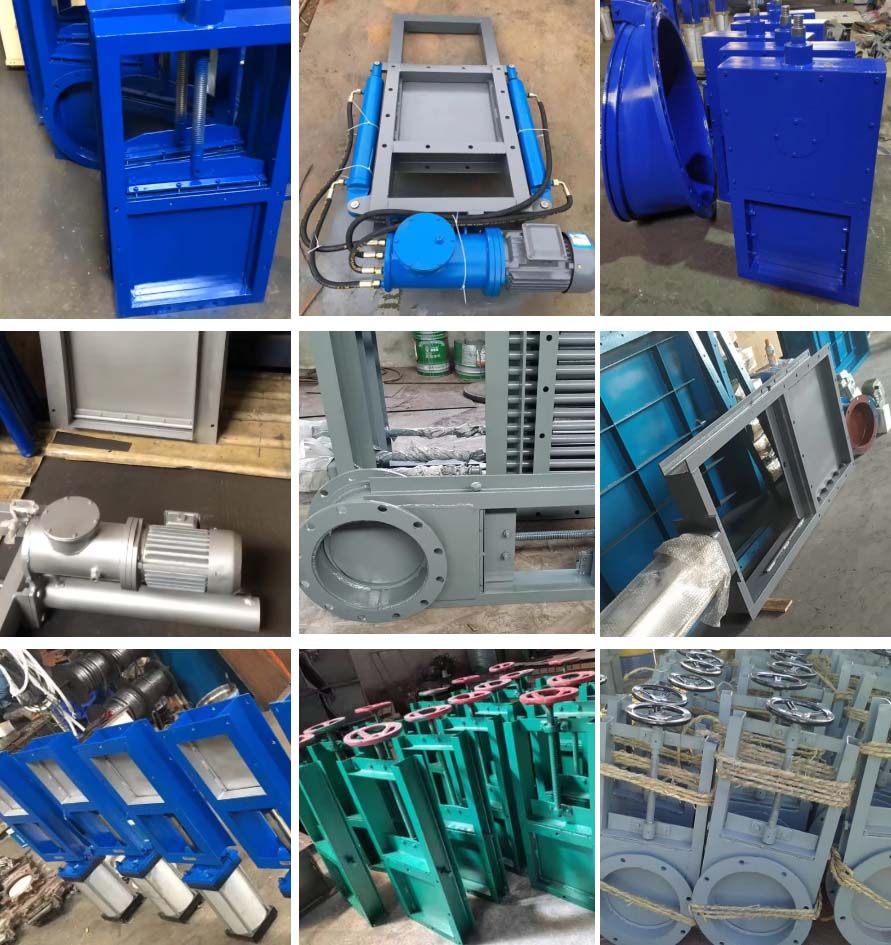

Lugged Knife Gate Valve Delivery
