Product Description

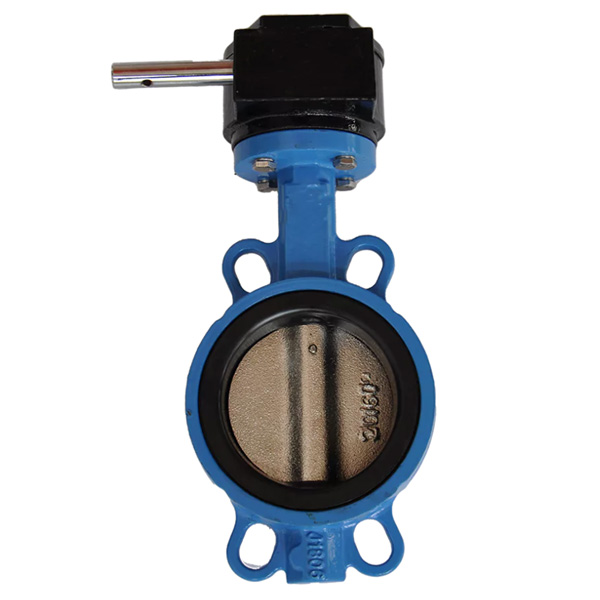

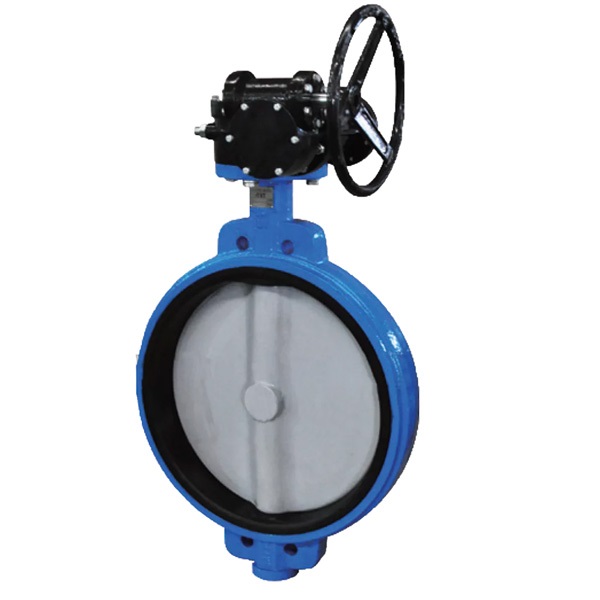

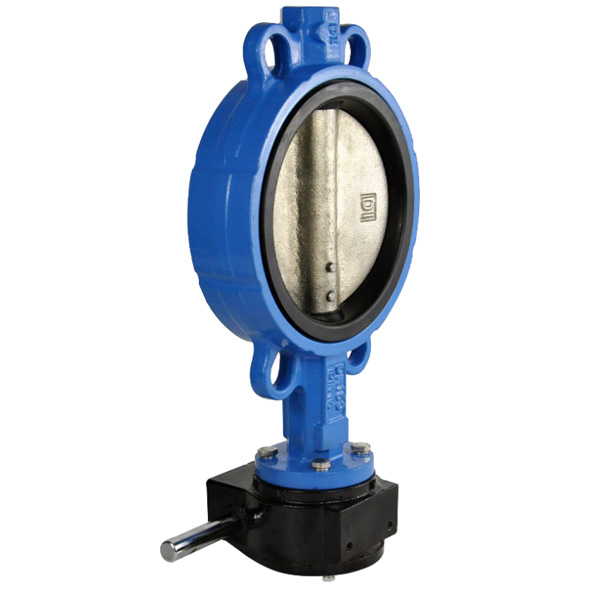

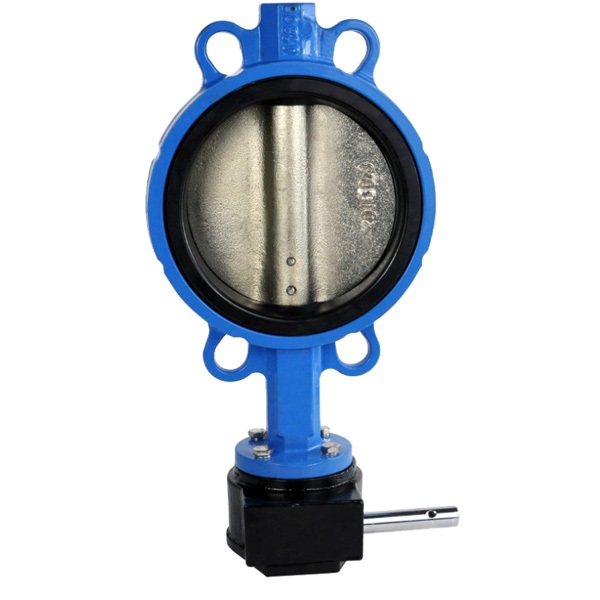

Ducitle Iron Wafer Butterfly Valve with Worm Gear Manufacture by Pindee Valve,which this kind of Ducitle Iron Wafer Butterfly Valve with Worm Gear is very popular in Asia,Europe, North American, South American,welcome our new and regular customers pay a visit to our website and send us an inquiry to see our price and delivery time.Our sales Manager email: sales@pindee.com
Reliable sealing: The wafer butterfly valve is equipped with a high-quality sealing system, ensuring leak-proof operation and preventing any unwanted fluid or gas leakage.
Excellent throttling capability: The worm gear mechanism allows for precise control of the valve opening, enabling efficient throttling and flow regulation.
Easy operation: The worm gear design provides smooth and effortless operation, allowing for easy opening and closing of the valve even in applications with high pressure or temperature.
Long service life: The ductile iron construction offers exceptional durability and resistance to wear, ensuring a long service life even in demanding environments.
Wide range of sizes and pressure ratings: The butterfly valve is available in various sizes and pressure ratings, allowing for flexibility in installation and compatibility with different piping systems.
Versatile application: The wafer butterfly valve can be used in a wide range of industries and applications, including water treatment, HVAC systems, chemical processing, and industrial processes, where reliable flow control is essential.
| SIZE | øK | 4-ød | øD | ||||||
| PN6 | PN10 | PN16 | CL150 | PN6 | PN10 | PN16 | CL150 | ||
| DN50 | 110 | 125 | 120.6 | 4-ø14 | 4-ø19 | 4-ø19 | 82 | ||
| DN65 | 130 | 145 | 139.7 | 4-ø14 | 4-ø19 | 4-ø19 | 94 | ||
| DN80 | 150 | 160 | 152.4 | 4-ø19 | 8-ø19 | 4-ø19 | 111.2 | ||
| DN100 | 170 | 180 | 190.5 | 4-ø19 | 8-ø19 | 8-ø19 | 140 | ||
| DN125 | 200 | 210 | 215.9 | 8-ø19 | 8-ø19 | 8-ø22.4 | 166 | ||
| DN150 | 225 | 240 | 241.3 | 8-ø19 | 8-ø23 | 8-ø22.4 | 187 | ||
| DN200 | 280 | 295 | 298.4 | 8-ø19 | 8-ø23 | 12-ø23 | 8-ø22.4 | 246.8 | |
| DN250 | 335 | 350 | 355 | 361.9 | 12-ø19 | 12-ø23 | 12-ø28 | 12-ø25.4 | 301.5 |
| DN300 | 395 | 400 | 410 | 431.8 | 12-ø23 | 12-ø23 | 12-ø28 | 12-ø25.4 | 352 |
| øD1 | L | L1 | H | H1 | H2 | ø2 | ø3 | 4-ødl | T*T |
| 53.08 | 42.5 | 46.1 | 30 | 140 | 60 | 70 | 90 | 10 | 11 |
| 64.82 | 45.6 | 49 | 30 | 150 | 67 | 70 | 90 | 10 | 11 |
| 79.04 | 45.6 | 48.4 | 30 | 160 | 87 | 70 | 90 | 10 | 11 |
| 104.04 | 52 | 56 | 30 | 180 | 105 | 70 | 90 | 10 | 11 |
| 123.3 | 56 | 60 | 30 | 190 | 118 | 70 | 90 | 10 | 14 |
| 155.68 | 56 | 60 | 30 | 210 | 130 | 70 | 90 | 10 | 14 |
| 201.9 | 60 | 64 | 35 | 235 | 166 | 102 | 125 | 12 | 17 |
| 250.45 | 68 | 72 | 35 | 270 | 197 | 102 | 125 | 12 | 22 |
| 301.55 | 78 | 83 | 35 | 305 | 231 | 102 | 125 | 12 | 22 |
Pindee Valve Inspection:
Pindee Valve Packing:
