Product Description
Product Description

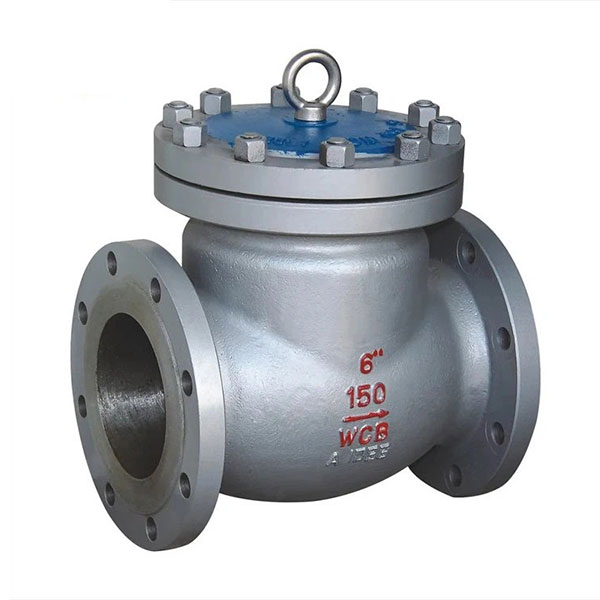

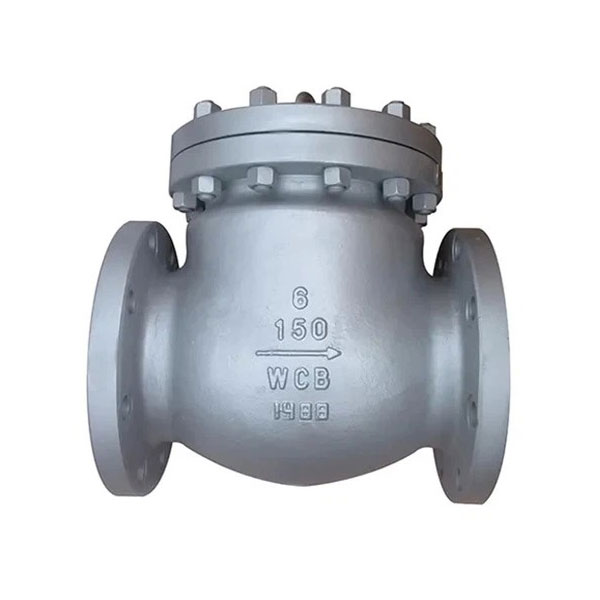

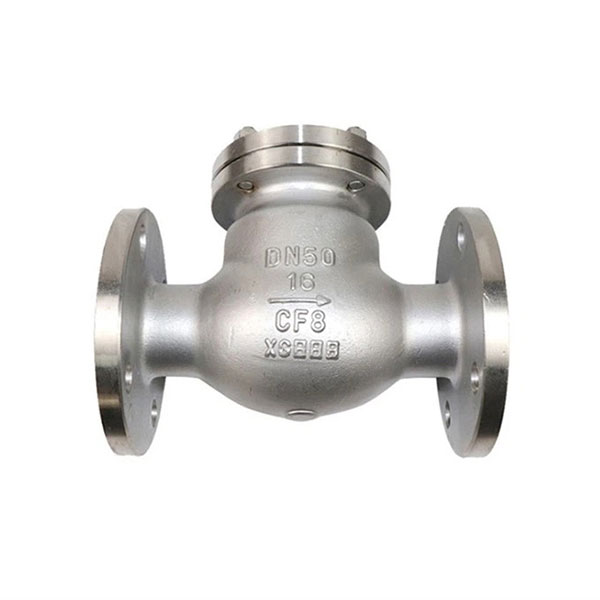

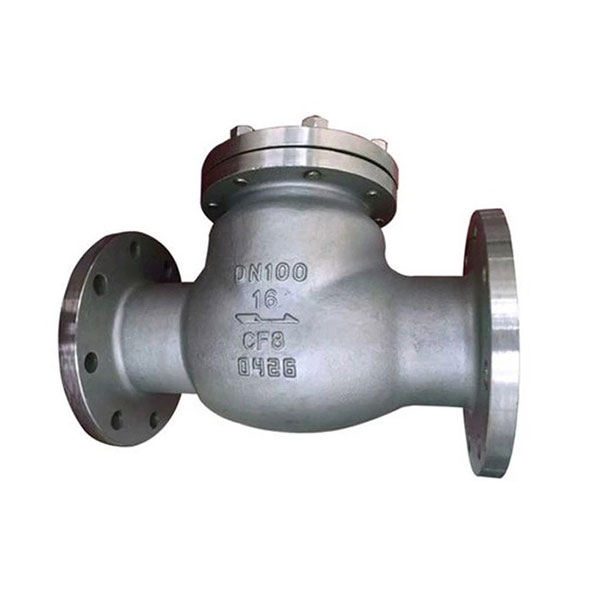

The Flanged Swing Check Valve is an important component in many industrial and commercial applications. It is designed to regulate the flow of fluid and prevent backflow. Like any other mechanical device, check valves require maintenance and care to ensure optimal performance and long service life.
One of the key benefits of the Flanged Swing Check Valve is its ease of installation. It comes with flanges attached to the valve body, allowing it to be attached directly to the pipe flange. This reduces the need for additional fittings and makes installation quick and easy.
In addition to its ease of installation, the Flanged Swing Check Valve also provides reliable performance. When properly maintained, these valves can offer long-lasting service and reduce the likelihood of equipment failure and downtime. The design of the valve helps prevent fluid from flowing back and damaging downstream equipment, making it an ideal choice for critical applications.
Furthermore, the Flanged Swing Check Valve is available in a range of materials, including stainless steel, carbon steel, and ductile iron, to suit different applications and environments. This ensures that the valve can withstand harsh conditions and provide consistent performance over time.
Overall, the Flanged Swing Check Valve is a valuable component in fluid control systems. With its ease of installation, reliable performance, and adaptability to different applications and environments, it is an essential tool for many industries and businesses.
Material: WCB, CF8, CF8M, etc
Dimensions: CLASS 300
Size | L | D | D1 | D2 | b | Z-φd |
DN50 | 267 | 165 | 127 | 92 | 23 | 8-φ19 |
DN65 | 292 | 190.5 | 150 | 105 | 26 | 8-φ22 |
DN80 | 318 | 210 | 168.5 | 127 | 29 | 8-φ22 |
DN100 | 356 | 254 | 200 | 157 | 32 | 8-φ22 |
DN125 | 400 | 279 | 235 | 186 | 35 | 8-φ22 |
DN150 | 444 | 318 | 270 | 216 | 37 | 12-φ22 |
DN200 | 533 | 381 | 330 | 270 | 42 | 12-φ25 |
DN250 | 622 | 445 | 387.5 | 324 | 48 | 16-φ29 |
DN300 | 711 | 521 | 451 | 381 | 51 | 16-φ32 |
DN350 | 838 | 584 | 514.5 | 413 | 54 | 20-φ32 |
DN400 | 864 | 648 | 571.5 | 470 | 58 | 20-φ35 |
DN450 | 978 | 711 | 629 | 533.5 | 61 | 24-φ35 |
DN500 | 1016 | 775 | 686 | 584 | 64 | 24-φ35 |
Our Advantages
The company aims to provide our customers with the highest quality products, the most competitive prices, on-time delivery and comprehensive warranty services.
20-year drive valve manufacturer, mass customization available.
• Large inventory with short lead times.
• Germany imported manufacturing equipment, 100% QC before shipment, quality is guaranteed. Industry Standard 1 Year (12 Months) Warranty.
• ISO 9001 certified, additional certifications include CE, RoHS, SGS, BV, Explosion Proof and Flame Retardant.
• Provide OEM/ODM service.
Product Feature and Applications
1. Swing check valve disc shapes as a disc, which is around seat channel shaft for rotary motion.
2. Its main function is to prevent medium for backflow, the pump and drive motor for reversal and container medium for relief.
3. It is suitable for low velocity and the flow doesn't often change in large diameter occasion.
