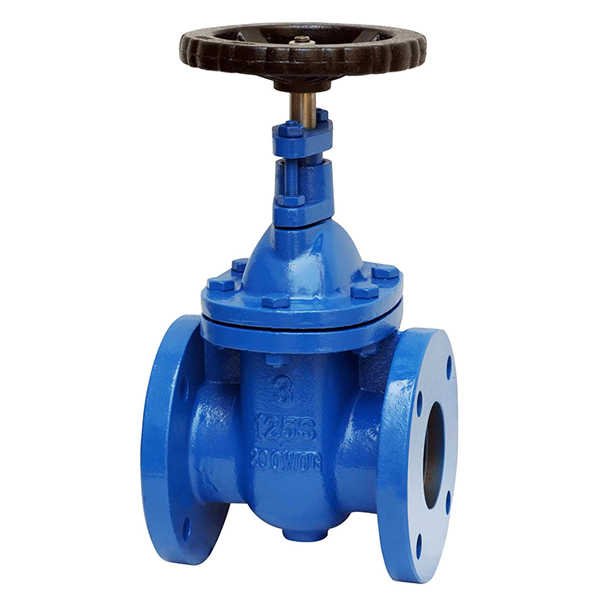

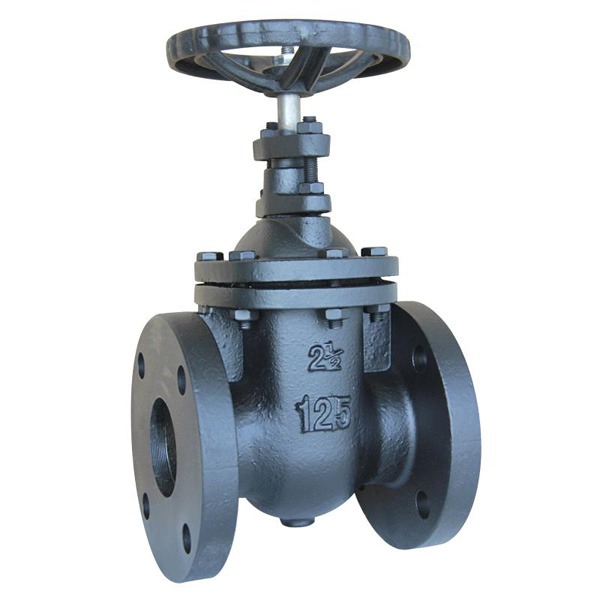

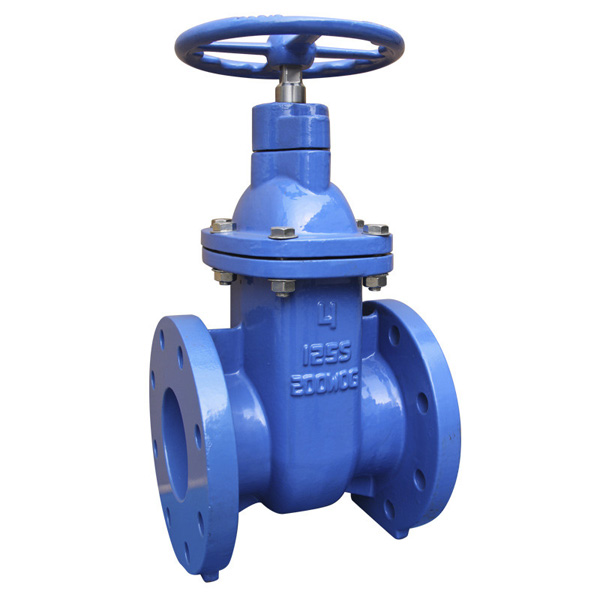

MSS SP-70 Metal-Seal Cast Iron Gate Valve

MSS SP-70 Metal-Seal Cast iron Non-Rising Stem Gate Valve
Technical Specifications of Metal Seated Gate Valve
Non-Rising Stem:
- Design and manufacture: MSS SP-70
- Face to face dimensions: ANSI B16.10
- Flange dimensions and drilling: ANSI B16.1
- Size range: 2" ~ 24"
- Working pressure: 200 psi
- Suitable medium: water, oil and gas.

Availability:

Quantity:



Inquire

Product Description

Product Description

MSS SP-70 Metal-Seal Cast Iron Gate Valve manufacture from PINDEE VALVE which produce MSS SP-70 Metal-Seal Cast Iron Gate Valve is a widely used valve in various industries such as oil and gas, water treatment and chemical plants. The valve is designed with a metal-to-metal seal, which ensures that the valve seals tightly and without leakage. This makes the valve perfect for use in applications that require high sealing performance.Designed to provide excellent performance and long-lasting service, this valve is perfect for many different types of industries.

If you are looking for a reliable supplier of high quality MSS SP-70 Metal-Seal Cast Iron Gate Valve, PINDEE VALVE is your best choice.

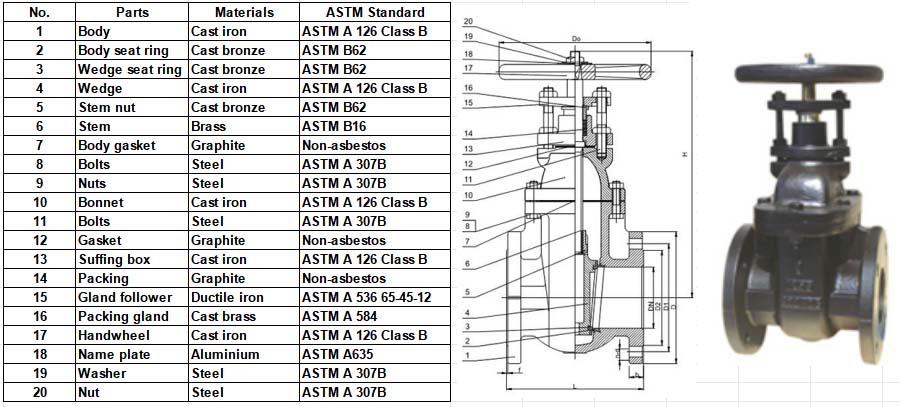

Parts and Materials of MSS SP-70 Metal-Seal Cast iron Non-Rising Stem Gate Valve:

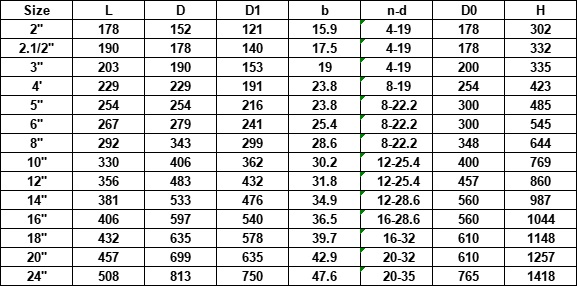

Dimensions (mm & inch) of MSS SP-70 Metal-Seal Cast iron Non-Rising Stem Gate Valve:

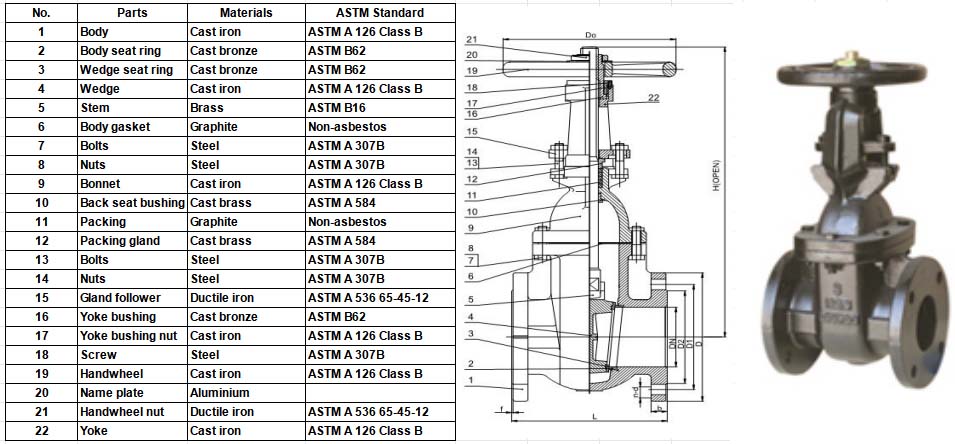

Parts and MSS SP-70 Metal-Seal Cast iron Rising Stem Gate Valve:

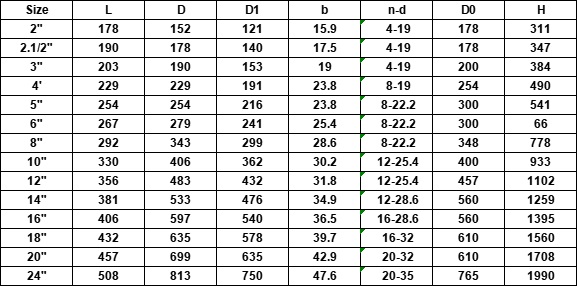

Dimensions (mm & inch) of MSS SP-70 Metal-Seal Cast iron Rising Stem Gate Valve:
