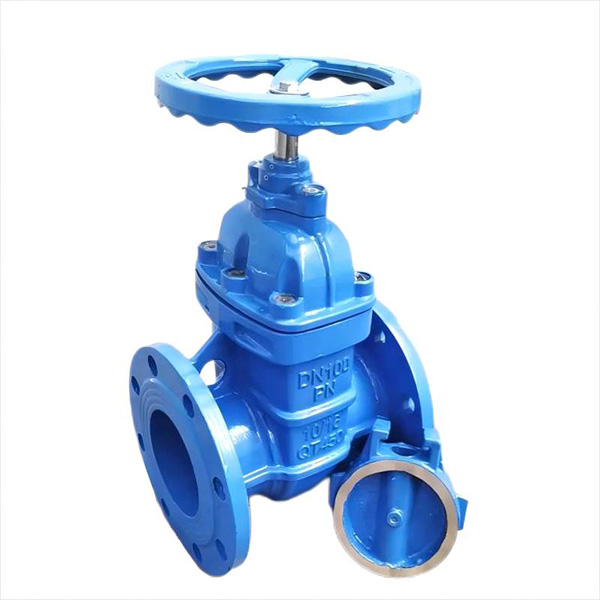

DIN3352 F4 Metal Seat Gate Valve

DIN3352 F4 Metal Seat Gate Valve manufacture by PINDEE VALVE.The main difference between DIN3352 F4 metal seal flanged end gate valve and DIN3352 F4 resilient seat flanged end gate valve is that the sealing parts are different - metal seal is metal-to-metal sealing, usually brass, with high sealing performance, suitable for high temperature and high pressure fluids, such as oil, gas and chemical pipelines. While resilient seats are usually made of EPDM or NBR rubber and are suitable for low pressure pipelines, usually water, sewage and irrigation. Otherwise the connection dimensions are the same.

PINDEE VALVE is a well-established supplier of DIN3352 F4 Metal Sealed Flanged End Gate Valves. We can supply metal sealed gate valves with different specifications according to project needs. If you need it, welcome to contact us.

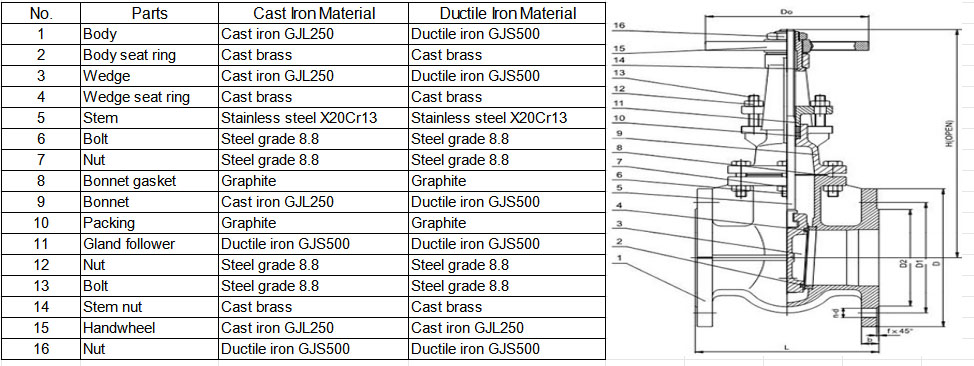

Parts and Materials of DIN3352 F4 Metal Seat Gate Valve:

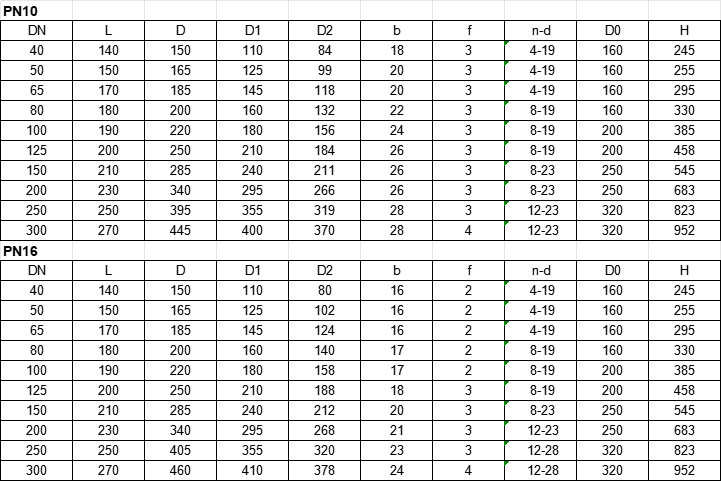

Dimensions (mm) of DIN3352 F4 Metal Seat Gate Valve:

PINDEE VALVE PACKING

PINDEE VALVE DELIVERY

PINDEE VALVE INSPECTION
