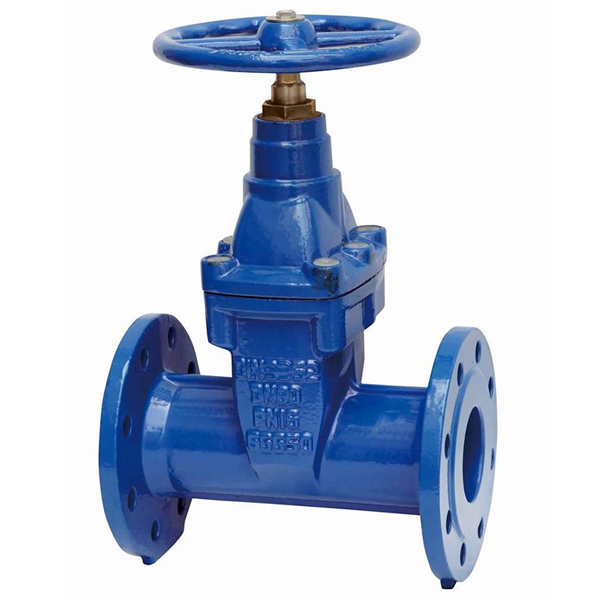

DIN3352 F5 Metal Seat Gate Valve

DIN3352 F5 Metal Seat Gate Valve are available in sizes ranging from DN40 to DN600 and pressure ratings from PN10 to PN25.They are widely used in oil, gas and petrochemical pipelines because of their metal-to-metal sealing design, which reduces the risk of leakage and is able to withstand high temperatures and high pressure working environments. If you are looking for reliable DIN3352 F5 Metal Sealed Flanged End Gate Valve suppliers, PINDEE VALVE is your best choice. We offer competitive price and excellent customer service to ensure your satisfaction. Welcome to contact us for more information.

DIN F5 Metal sealed Gate Valve Manufacture

1.Features:

sizes: DN4O-DN600

Standards: DIN3352

Face to Face: DIN3202 F5

Flange Drilling: DIN2531,DIN2532,DIN2533,etc

Certificate: CE,ISO9001,DNV

2.Application:

Working Temperature: -10C-120C

Working Pressure: PN10/PN16

Suitable Media: Water,Oil,Gas

PINDEE VALVE PACKING

PINDEE VALVE DELIVERY

PINDEE VALVE INSPECTION
