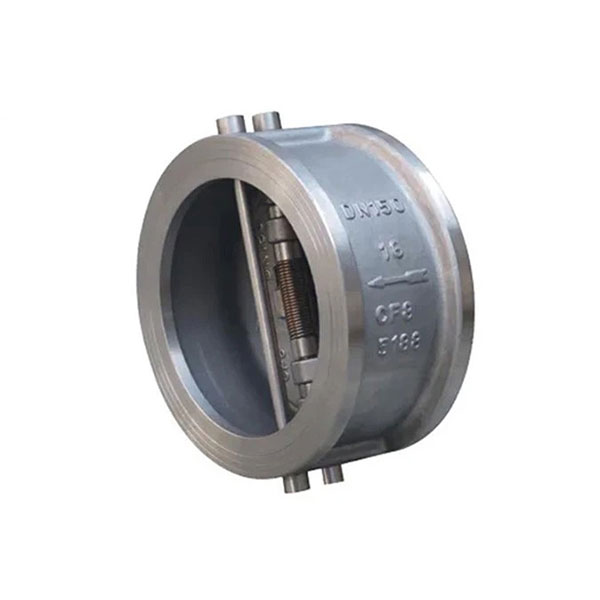

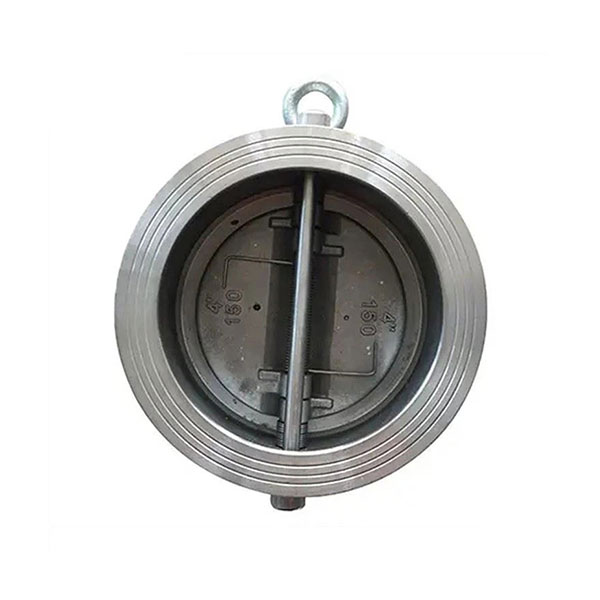

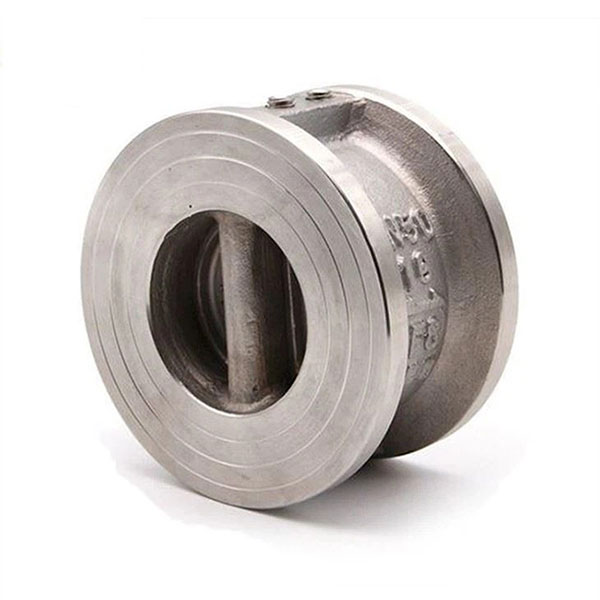

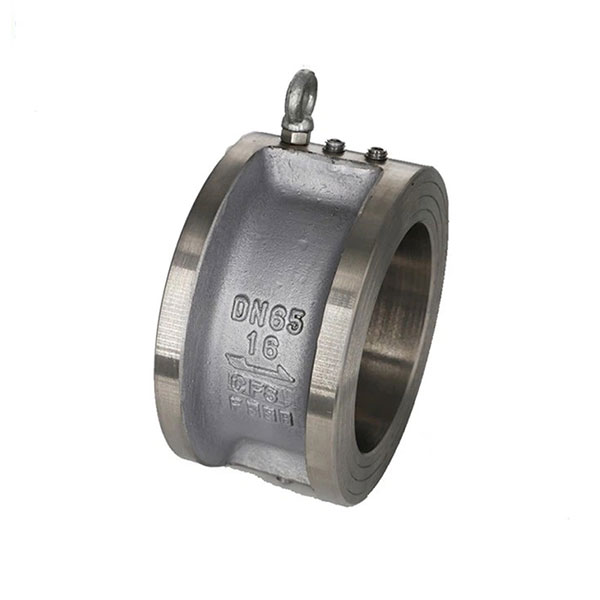

Disc Check Valve Wafer Type

Products Description

Disc Check Valve Wafer Type is a commonly used valve device, its main function is to control and regulate the flow of fluid. A disc-shaped valve is installed inside this valve, which can be adjusted according to the flow direction of the medium through the action of hydraulic force or spring to realize fast switching, thus effectively ensuring the normal flow of the medium in the pipeline. It has two openings, one for fluid entry and the other for fluid exit. The product is widely used in pipeline systems in petroleum, chemical, pharmaceutical, and other industries. Users can choose suitable valve models and usage methods according to different needs to ensure safe and efficient pipeline operation.

Advantages

Disc Check Valve Wafer Type itself is small in size, uniform in overall structure, and low in mass, and is very convenient for maintenance. It can naturally cut off the passage under the elastic moment of the spring. The rapid closing process makes it possible to directly avoid the phenomenon of the reverse flow of substances. The small size makes it easy to install between flanges, and the unique internal structure can protect the pipeline from water hammer damage. At the same time, rubber and other sealing materials provide it with good sealing, so as to ensure that the medium in the pipeline will not leak. Secondly, it is made of stainless steel and other materials, so it is wear-resistant, high-temperature resistant, corrosion-resistant and has a long service life, and can be used in a variety of media conditions (-29 to 300°C, 0-64 bar). Finally, the Disc Check Valve Wafer Type has high operating efficiency and can quickly respond to the flow state of the medium, ensuring the stability and safety of the pipeline. You can avoid accidents under high temperature or high pressure as long as you regularly check the operation status and sealing of the valve.

Material: WCB, CF8, CF8M, etc

Dimensions: CLASS 150

CHECK VALVE: are two-port valves, meaning they have two openings in the body, one for fluid to enter and the other for fluid to leave. There are various types of check valves used in a wide variety of applications. Check valves are often part of common household items. Although they are available in a wide range of sizes and costs, check valves generally are very small, simple, and inexpensive. Check valves work automatically and most are not controlled by a person or any external control; accordingly, most do not have any valve handle or stem. The bodies (external shells) of most check valves are made of plastic or metal.

The sealing surface of this product can be surfacing wear-resistant material or rubber lining, which has a wide range of applications and reliable sealing. It is used for pure pipelines and industrial, environmental protection, water treatment, high-rise building water supply and drainage pipelines to prevent the reverse flow of the medium.
