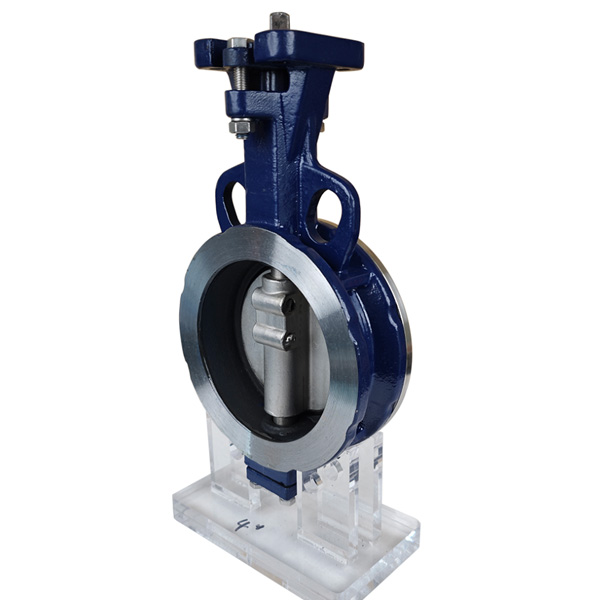

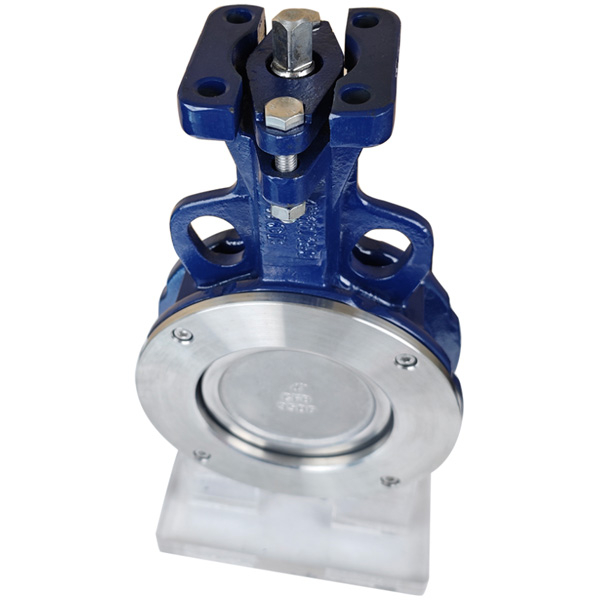

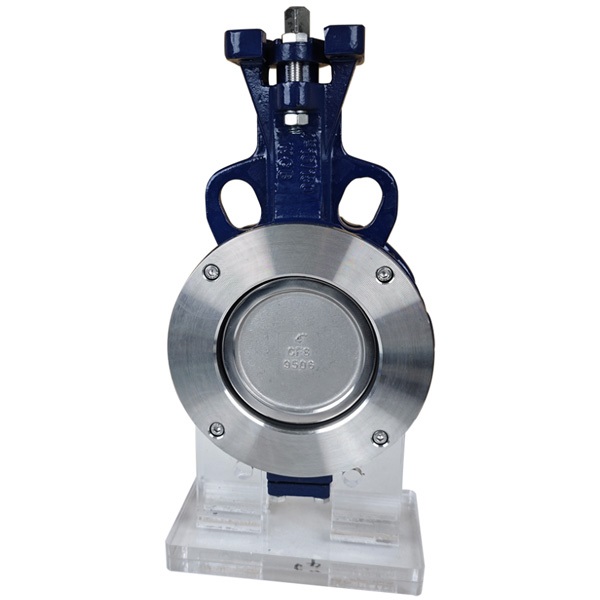

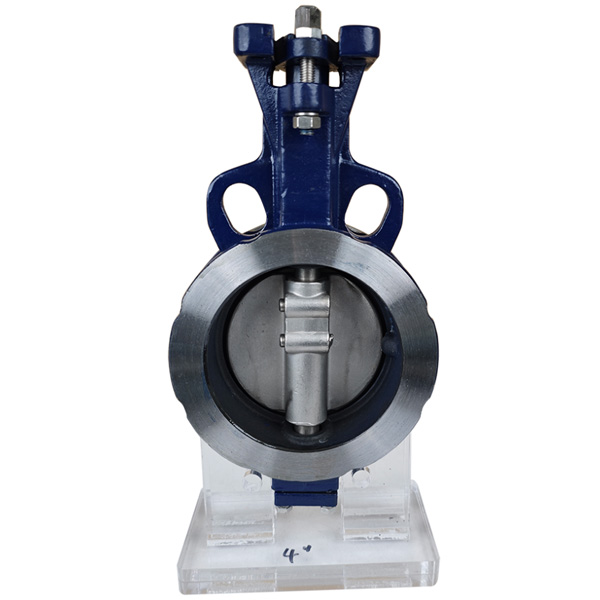

Pindee Valve Manufacture PN16 CL150 High Performance WCB Wafer Butterfly Valve

Size Range: DN50-DN2000
Pressure Rating:PN6 / PN10 / PN16 / 150LB
Body: Body: WCB, Stainless Steel
Disc: WCB (A216), Stainless Steel(SS304/SS316/SS304L/SS316L) , Duplex Stainless Steel(2205/2507)
Seat: RPTFE
Actuator: Worm Gear
Sample: available

Availability:

Quantity:



Inquire

Product Description

Product Description

Pindee Valve Manufacture PN16 CL150 High Performance WCB Wafer Butterfly Valve which this kind of PN16 CL150 High Performance WCB Wafer Butterfly Valve is very popular in Asia,Europe, North American, South American,welcome our new and regular customers pay a visit to our website and send us an inquiry to see our price and delivery time.Our sales Manager email: sales@pindee.com

Multi-standard Pressure Rating (PN and Class/LB) – Suitable for multinational standards like metric and imperial, offering versatility in various pipeline systems.
Tight Seal: Available in soft-seal (PTFE, NBR, EPDM) or metal-seal (Stainless Steel) options for various applications.
Double eccentric type: This CL150 high performance butterfly valve is well designed, as it has reliable sealing performance and fluid control capabilities. So it can adapt to various working conditions.
Energy saving and environmental protection: The butterfly valve may adopt an advanced design, which can reduce fluid resistance, reduce energy consumption, and meet the requirements of energy saving and environmental protection.
Space-saving design: Lightweight, compact, and easy to install between flanges without additional supports.

Ducitle Iron Wafer Butterfly Valve with Worm Gear 7

Pindee Valve Manufacture Wafer Stainless Steel High-Performance Butterfly Valve CLASS150LB-drawing

Size	H1	H2	H3	L	D	D1	E	P	M	C
Size	H1	H2	H3	L	D	D1	E	P	M	10K	PN16	150LB
DN50	72	137	16	43	96	58	50	11	F07	120	125	120.5
DN65	80	152	16	49	119	75	59	11	F07	140	145	139.5
DN80	87	162	16	49	128	91	72	11	F07	150	160	152.5
DN100	102	177	17	54	158	114	96	11	F07	175	180	190.5
DN125	120	195	19	56	186	138	120	14	F07	210	210	216
DN150	132	217	19	56	216	142	142	14	F10	240	240	241.5
DN200	167	246	25	64	265	208	190	19	F10	290	295	298.5
DN250	205	298	28	71	320	265	238	22	F12	355	355	362
DN300	245	335	32	81	378	310	282	27	F12	400	410	432
