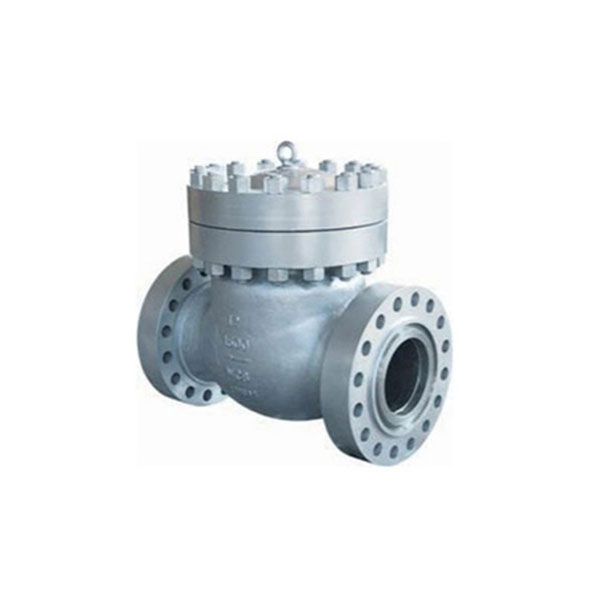

API Flange Cast Steel Swing Check Valve

Structural features of the swing check valve:

1. The structure length is short, and its structure length is only 1/4 ~ 1/8 of the traditional flange check valve

2. small size, lightweight, its weight is only 1/4 ~ 1/20 of the traditional flange check valve

3. The valve flap closes quickly and the water hammer pressure is small

4. Both horizontal and vertical pipes can be used, which is easy to install

5. The flow channel is unobstructed and the fluid resistance is small

6. sensitive action, good sealing performance

7. Short stroke of the valve and small impact force when the closing valve

8. the overall structure, simple and compact, beautiful appearance

9.Long service life and high reliability

The Working Principle of the Spring Check Valve:

Through the up and down movement of the cylinder plug, the valve flap is opened and closed quickly to achieve the sealing surface

A structural form: single swing flap

B drive method: butt welding connection

C connection form: butt welding connection

The opening and closing of the D valve are controlled by a pneumatic device to speed up the opening and closing of the valve.

Maintenance and maintenance of swing check valve：

1 The valve should be stored in a dry and ventilated room to prevent moisture, rain, and rust.

2 The storage and opening and closing parts should be in the closing device during storage and transportation.

The valve flap should be fixed to open, and the inner ports at both ends of the diameter should be blocked with foam boards. The ports must be plugged tightly to prevent dust and rust, to keep the passage clean and the end surface flat. And anti-collision; the valve should be stable when placed,

The pneumatic drives are facing up and must not be squeezed against each other.

3 It should be checked regularly when it is left for a long time. Every three months, check the dirt and rust on the two channels, the sealing surface, and the protection of the welding joint. After wiping the dirt and rust, apply anti-rust oil to protect it.

Techical Parameters

Pindee Check Valve Manufacture

Application:

1.Chemical;
2.Pharmaceutical;
3.Chemical fertilizer;
4.Electricity and other pipeline.
