Product Description
Description & Features

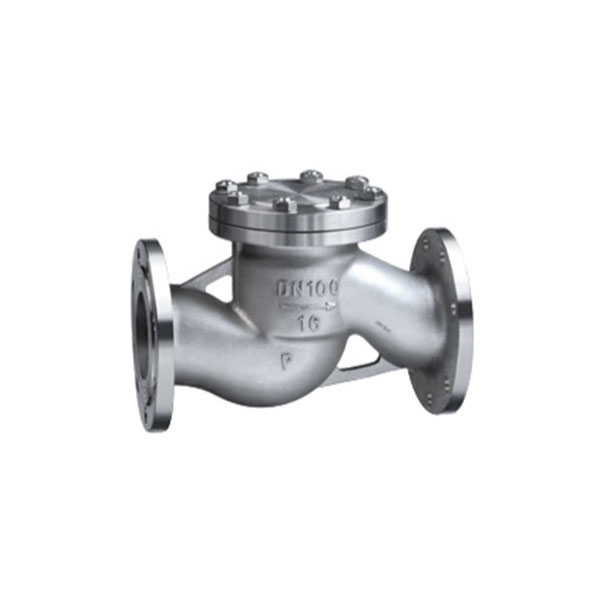

It is mainly used with angle and globe valves in piping systems that have periodic changes in flow directions. It is also used in high-pressure applications that have high flow velocity. Well-suited for installation in both vertical and horizontal pipelines with upward flow. It is commonly used in air, water, and steam systems.
● Replaceable seat.
● A variety of body and interior materials.
● The design of piston and valve seat, acting on the piston back pressure, sealing performance is excellent.
● These valves are unidirectional valves and restrict flow from opposite direction.
Specifications
| Size Range | Body Material |
1 1/4"-8" DN32-DN200 | WCB, LCB, WC6, CF8 |
| Pressure Rating | Disc Material |
Class150-Class600 PN16-PN100 | WCB, LCB, WC6, CF8 |
| End Connection | Seat Material |
| Flange (FF, RF, RJ), Butt Welding | A105+F6a, A105+STL6, 304, 316, Hastelloy, Monel, etc. |
| Structure Style | Stem Material |
| Full Port | / |
| Actuator Options | Design Standard |
| / | GB/T 12235 |
| Temperature Range | Face to Face Standard |
| -196℃~650℃ | GB/T 12221, GB/T 15188.1 |
| Connection Standard | Test Standard |
Flange Drilling: ASME B16.5, ASME B16.47, GB/T 9113, JB/T 79 Butt Weld: ASME B16.25, GB/T 12224 | JB/T 9092, GB/T 13927 |
