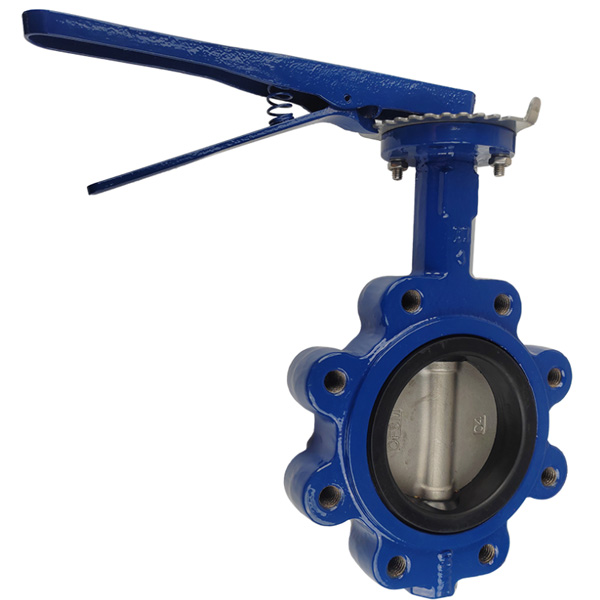

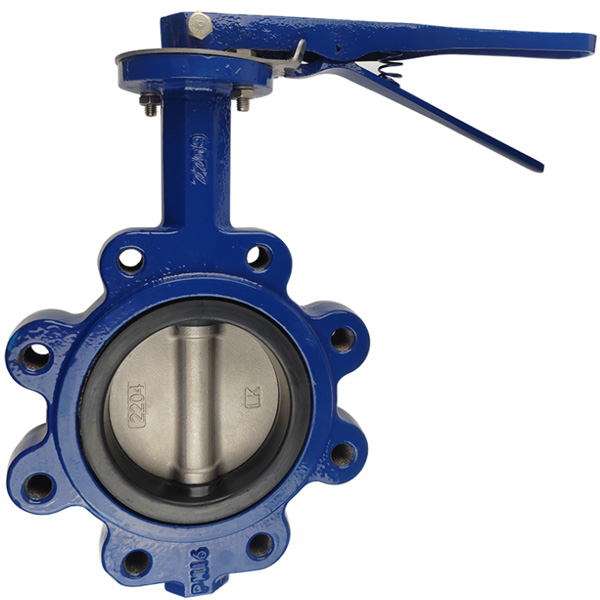

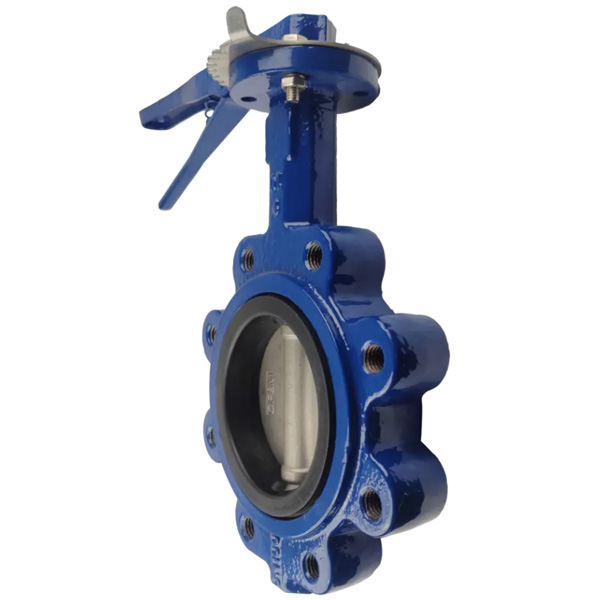

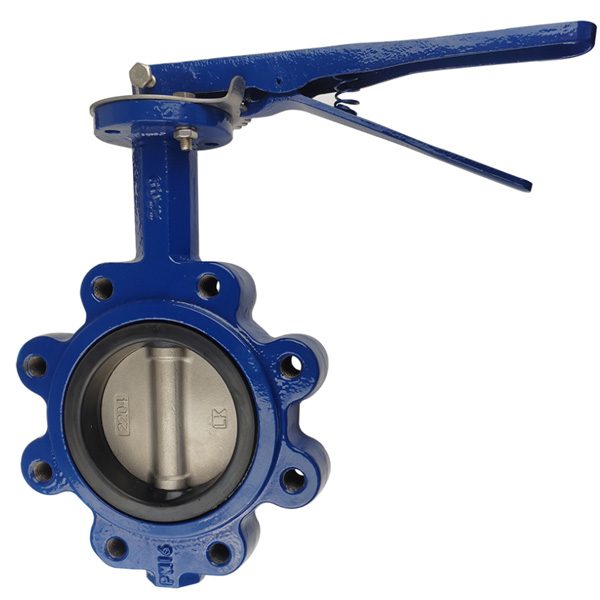

Ductile Iron Bod EPDM Seat Lug style Butterfly Valve Manufacture by Pindee Valve

Size Range: DN50-DN2000
Pressure Rating:PN6 / PN10 / PN16 / 150LB
Body: Ductile Iron(GGG40/50)
Disc: DI(Ni lined), WCB (A216), Stainless Steel(SS304/SS316/SS304L/SS316L) , Duplex Stainless Steel(2205/2507)
Seat: Rubber(EPDM/Viton/NBR)
Actuator: Worm Gear, Electric Actuator, Pneumatic Actuator.
Sample: available

Availability:

Quantity:



Inquire

Product Description

Product Description

Ductile Iron Bod EPDM Seat Lug style Butterfly Valve Manufacture by Pindee Valve which this kind of Ductile Iron Bod EPDM Seat Lug style Butterfly Valve is very popular in Asia,Europe, North American, South American,welcome our new and regular customers pay a visit to our website and send us an inquiry to see our price and delivery time.Our sales Manager email: sales@pindee.com

Excellent sealing and chemical resistance: EPDM valve seat has high elasticity and resilience, so it can effectively seal the valve and prevent leakage and leakage. besides，It has excellent chemical stability, can resist corrosion and erosion from a variety of chemicals, and is suitable for various media.
Temperature adaptability: EPDM valve seats can work normally in a wide temperature range, with good heat resistance and cold resistance from minus 20 to 80 degrees Celsius.
Lug design: Lug style butterfly valve has a lug design. This can reduce the erosion of the valve seat and sealing ring by the medium, and improve the service life and reliability.
Centerline design: This lug style butterfly valve adopts a centerline design. It makes the valve action more stable and accurate, reduces the opening and closing torque, and improves operating performance and ease of use.
hard back seat : the material of the lug style butterfly valve is composed of rubber on the outside wrapped on the hard back inside. The installation method is using a professional valve assembly platform to press the valve seat into the valve body through a machine.
Design Standard EN593 | API609, Face to Face Standard EN558 | ISO5752 | API608 | BS5155-4, Top Flange Standard ISO5211.

Parts	Ductile Iron type	WCB type	Stainless Steel Type	Duplex Stainless Steel Type
Body	Cast Iron(GG25)	A216	SS304/ CF8	2205
	Ductile Iron(GGG40/50)	A217	SS316/CF8M	2507
		A105(forged)	SS304L/CF3	1.4529
			SS316L/CF3M
Disc	Ductile Iron with Ni coated		SS304/ CF8	2205
	Ductile Iron with nylon coated		SS316/CF8M	2507
	Ductile Iron with PTFE/EPDM lined		SS304L/CF3	1.4529
	Stainless Steel		SS316L/CF3M
	Duplex Stainless Steel		2205
	Bronze		2507
			1.4529
Seat	NBR, EPDM, PTFE, Viton, Hypalon, Silicon, PFA
Stem	SS416, SS431, SS304, SS316, Duplex Stainless Steel, Monel			Duplex Stainless Steel, Monel
Actuator	Hand Lever, Worm Gear, Electric, Pneumatic

Paraments of Ductile Iron Bod EPDM Seat Lug style Butterfly Valve

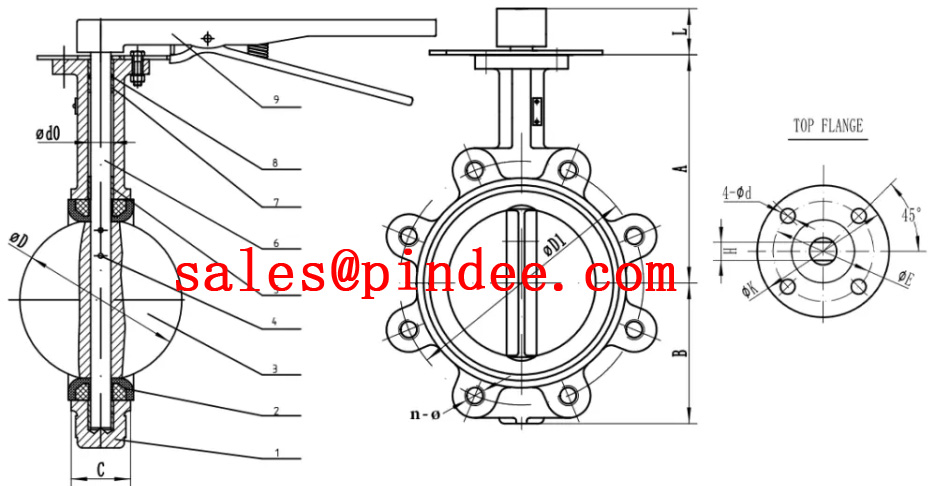

Ductile Iron Bod EPDM Seat Lug style Butterfly Valve Manufacture by Pindee Valve drawing

DN		A	B	C	D	L	D1	n-ø	K	E	4-ød	d0
mm	inch
50	2″	161	80	42	52.9	32	120	4-ø23	77	57.15	4-ø6.7	12.6
65	2.5″	175	89	44.7	64.5	32	136.2	4-ø26.5	77	57.15	4-ø6.7	12.6
80	3″	181	95	45.2	78.8	32	160	8-ø18	77	57.15	4-ø6.7	12.6
100	4″	200	114	52.1	104	32	185	4-ø24.5	92	69.85	4-ø10.3	15.77
125	5″	213	127	54.4	123.3	32	215	4-ø23	92	69.85	4-ø10.3	18.92
150	6″	226	139	55.8	155.6	32	238	4-ø25	92	69.85	4-ø10.3	18.92
200	8″	260	175	60.6	202.5	45	295	4-ø25	115	88.9	4-ø14.3	22.1
								4-ø23
250	10″	292	203	65.6	250.5	45	357	4-ø29	115	88.9	4-ø14.3	28.45
300	12″	337	242	76.9	301.6	45	407	4-ø29	140	107.95	4-ø14.3	31.6
350	14″	368	267	76.5	333.3		467	4-ø30	140	107.95	4-ø14.3	31.6
400	16″	400	309	86.5	389.6	51.2	515	4-ø26	197	158.75	4-ø20.6	33.15
						72	525	4-ø30
450	18″	422	328	105.6	440.51	51.2	565	4-ø26	197	158.75	4-ø20.6	38
						72	585	4-ø30
500	20″	480	361	131.8	491.6	64.2	620	4-ø26	197	158.75	4-ø20.6	41.15
						82	650	4-ø33
600	24″	562	459	152	592.5	70.2	725	20-ø30	276	215.9	4-ø22.2	50.65
						82	770	20-ø36
700	28″	624	520	163	695	66	840	24-ø30	300	254	8-ø18	55/63.35
						82		20-ø36
800	32″	672	591	188	794.7	66	950	24-ø33	300	254	8-ø18	55/63.35
						82		24-ø39
900	36″	720	656	203	864.7	118	1050	24-ø33	300	254	8-ø18	75
1000	40″	800	721	216	965	142	1160	24-ø36	300	254	8-ø18	85
