Pindee Valve Manufacture WCB Body PTFE Seated Flanged Butterfly Valve

Size Range: DN50-DN3000
Pressure Rating:PN6 / PN10 / PN16 / 150LB
Body: Ductile Iron(GGG40/50), Carbon Steel(WCB A216), Stainless Steel(SS304/SS316/SS304L/SS316L) , Duplex Stainless Steel(2507/1.4529),
Disc: DI(Ni lined), WCB (A216), Stainless Steel(SS304/SS316/SS304L/SS316L) , Duplex Stainless Steel(2205/2507)
Seat: PTFE
Actuator: None
Sample: available
MOQ=1 SET
Customization/OEM: accept

Availability:

Quantity:



Inquire

Product Description

Product Description

Pindee Valve Manufacture WCB Body PTFE Seated Flanged Butterfly Valve which this kind of WCB Body PTFE Seated Flanged Butterfly Valve is very popular in Asia,Europe, North American, South American,welcome our new and regular customers pay a visit to our website and send us an inquiry to see our price and delivery time.Our sales Manager email: sales@pindee.com

ITEM	Standard
Design	EN593 \| API609
Face to Face	EN558 \| ISO5752 \| API608 \| BS5155-4
Top Flange	ISO5211
Flange Drilling	PN6 \| PN10 \| PN16 \| ASME B16.5 CL150 \| JIS 10K
Pressure Rating	PN6 \| PN10 \| PN16 \| PN25 \| CL150 \| JIS 10K
Tightness Test	ISO5208 \| API598 \| EN12266-1

Parts	Ductile Iron type	WCB type	Stainless Steel Type	Duplex Stainless Steel Type
Body	Cast Iron(GG25)	A216	SS304/ CF8	2205
	Ductile Iron(GGG40/50)	A217	SS316/CF8M	2507
		A105(forged)	SS304L/CF3	1.4529
			SS316L/CF3M
Disc	Ductile Iron with Ni coated		SS304/ CF8	2205
	Ductile Iron with nylon coated		SS316/CF8M	2507
	Ductile Iron with PTFE/EPDM lined		SS304L/CF3	1.4529
	Stainless Steel		SS316L/CF3M
	Duplex Stainless Steel		2205
	Bronze		2507
			1.4529
Seat	NBR, EPDM, PTFE, Viton, Hypalon, Silicon, PFA
Stem	SS416, SS431, SS304, SS316, Duplex Stainless Steel, Monel			Duplex Stainless Steel, Monel
Actuator	Hand Lever, Worm Gear, Electric, Pneumatic

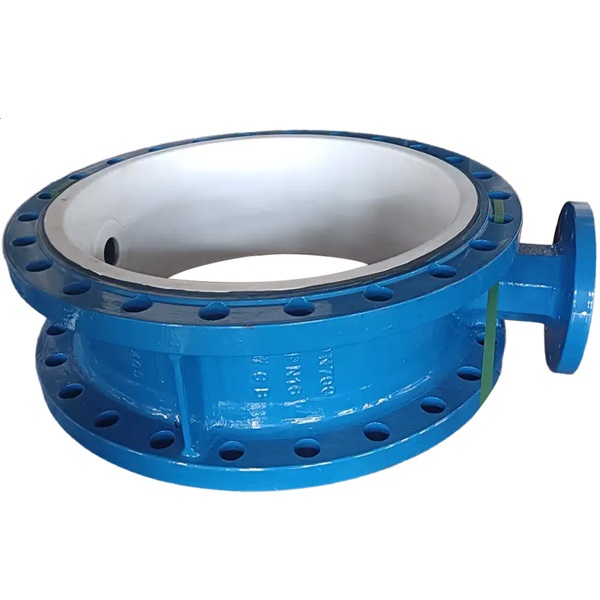

WCB body provides excellent strength and durability, and ability to handle high-pressure and high-temperature applications.

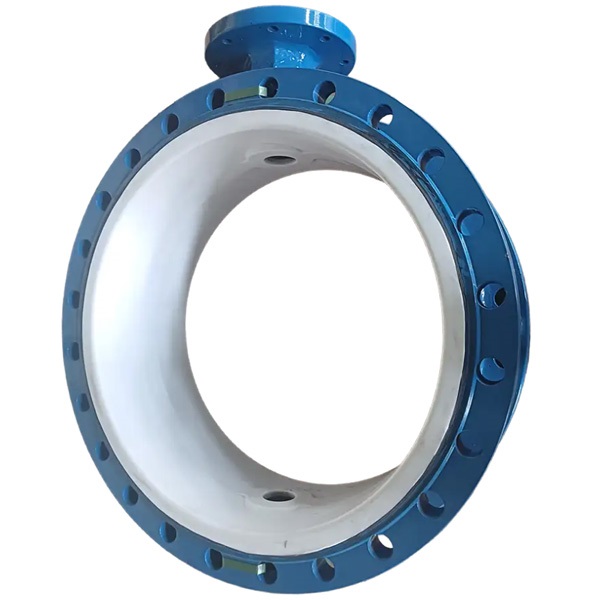

By using fluorine-lined material in the center line, the PTFE flanged butterfly valves body can be effectively prevented from being corroded and the service life of the valve is increased.
The PTFE Seat is firmly bonded to the EPDM of the valve body through a vulcanization process. It is ensuring long-lasting sealing performance.
The low friction coefficient of PTFE seat enables the valve to reduce wear during opening and closing. Thereby extending the service life of the valve.
PTFE itself has non-stick properties, which can prevent the medium from adhering to the valve seat surface, ensuring the cleanliness and smoothness of the fluid channel.
Compact structure: The PTFE flanged butterfly valve is made of ductile iron material, which can achieve a smaller size and lightweight structure, and is suitable for occasions with limited space.
CF8M disc: Provides outstanding performance in demanding applications due to its superior corrosion resistance and mechanical strength.

Ducitle Iron Wafer Butterfly Valve with Worm Gear 7

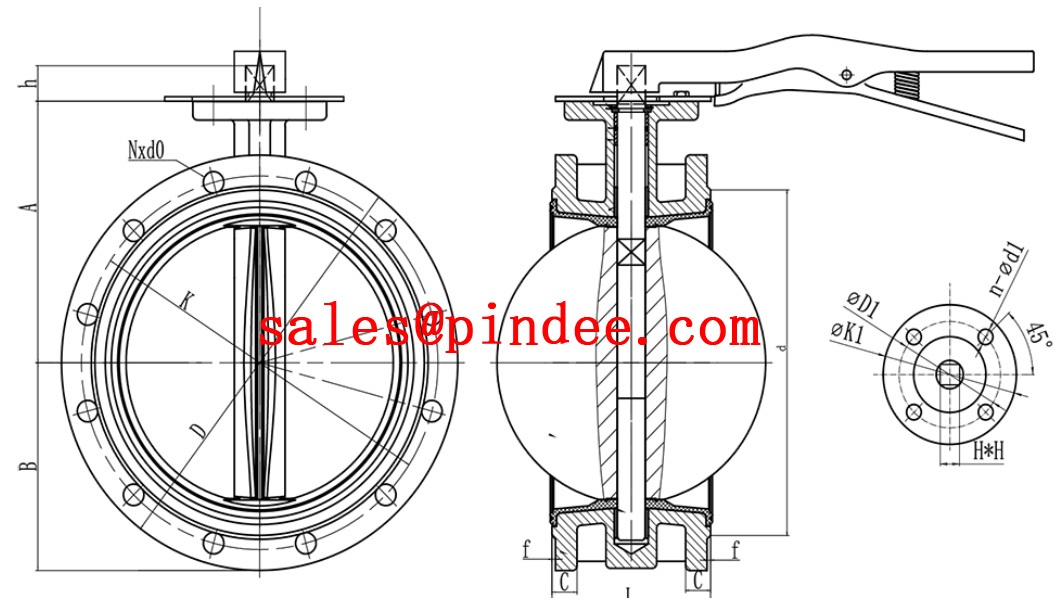

Pindee Valve Manufacture WCB Body PTFE Seated Flanged Butterfly Valve drawing1

DN	D		K		Nxd0		d		C		L	f	A	B	K1	D1	h
	PN10	PN16	PN10	PN16	PN10	PN16	PN10	PN16	PN10	PN16
DN50	165		125		4xø18		99		19		108	3	125	83	65	50	30
DN65	185		145		4xø18		118		19		112	3	142	93	65	50	30
DN80	200		160		8xø18		132		19		114	3	159	100	65	50	30
DN100	220		180		8xø18		156		19		127	3	165	130	90	70	30
DN125	250		210		8xø18		184		19		140	3	170	125	90	70	30
DN150	285		240		8xø22		211		20		140	3	185	143	90	70	30
DN200	340		295		8xø22	12xø22	270		20		152	3	228	150	125	102	35

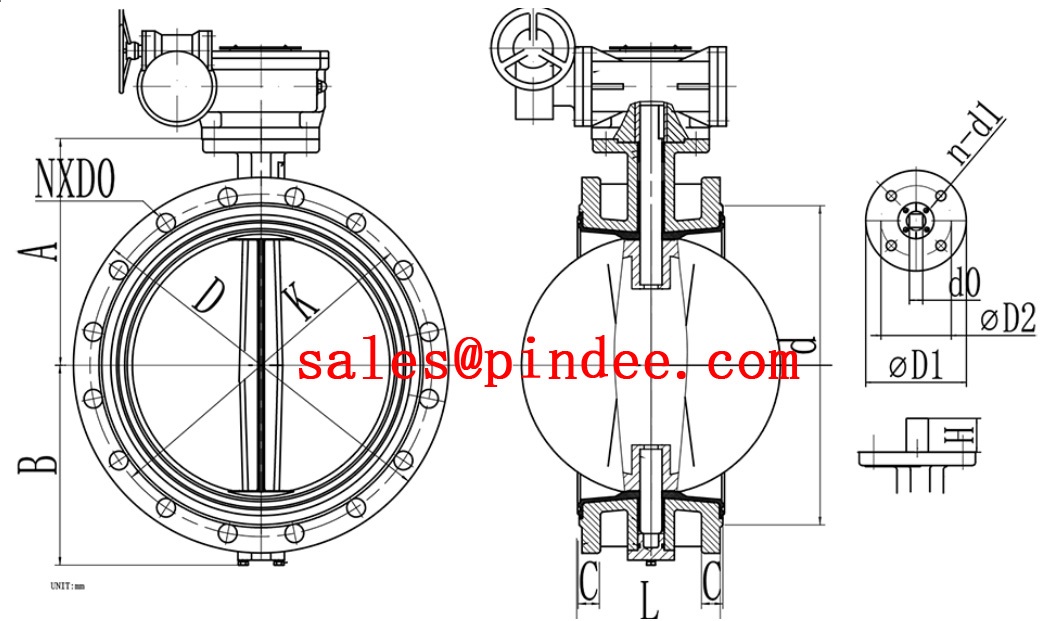

Pindee Valve Manufacture WCB Body PTFE Seated Flanged Butterfly Valve drawing2

DN	D		K		NxdO		d		C		L	f	A	B	D1	D2	H
DN	PN10	PN16	PN10	PN16	PN10	PN16	PN10	PN16	PN10	PN16	L	f	A	B	D1	D2	H
DN250	395	405	350	355	12xø23	12xø28	319		22		165	3	279	200	125	102	35
DN300	445	460	400	410	12xø23	12xø28	370		24		178	4	303	223	125	102	35
DN350	505	520	460	470	16xø23	16xø28	429		24	28	190	4	330	245	150	125	35
DN400	565	580	515	525	16xø28	16xø31	480		28	36	216	4	370	272	175	140	50
DN500	670	715	620	650	20xø28	20xø34	582	609	26	32	229	4	430	339	210	165	50
DN600	780	840	725	770	20xø31	20xø37	682	720	30	36	267	5	500	384	210	165	60
DN700	895	910	840		24xø31	24xø37	794		32.5	39.5	292	5	560	480	300	254	80
DN800	1015	1025	950		24xø34	24xø40	901		35	41	318	5	620	530	300	254	80
DN900	1115	1125	1050		28xø34	28xø40	1001		36	44	330	5	685	605	300	254	100
DN1000	1230	1255	1160	1170	28xø37	28xø43	1112		40	50	410	5	735	670	300	254	100
DN1200	1455	1485	1380	1390	32xø40	32xø49	1328		45	57	470	5	917	780	350	298	100
