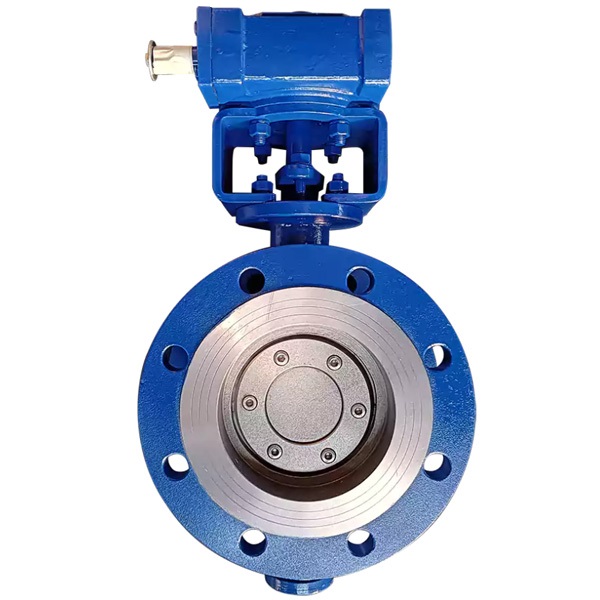

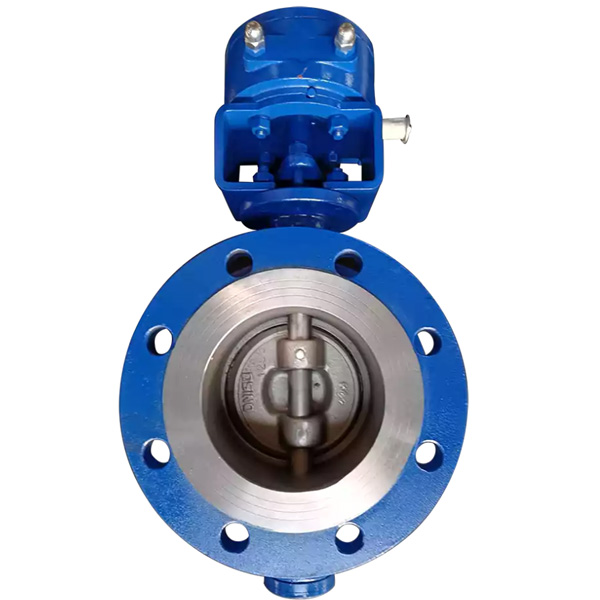

Pindee Valve Manufacture DN150 Triple Eccentric Yoke Butterfly Valve

Size Range: DN50-DN3000
Pressure Rating:PN6 / PN10 / PN16 / 150LB
Body: Ductile Iron(GGG40/50), Carbon Steel(WCB A216), Stainless Steel(SS304/SS316/SS304L/SS316L) , Duplex Stainless Steel(2507/1.4529),
Disc: DI(Ni lined), WCB (A216), Stainless Steel(SS304/SS316/SS304L/SS316L) , Duplex Stainless Steel(2205/2507)
Seat: Metal+Flexible Graphite
Actuator:Worm Gear
Sample: available
MOQ=1 SET
Customization/OEM: accept

Availability:

Quantity:



Inquire

Product Description

Product Description

Pindee Valve Manufacture DN150 Triple Eccentric Yoke Butterfly Valve which this kind of DN150 Triple Eccentric Yoke Butterfly Valve is very popular in Asia,Europe, North American, South American,welcome our new and regular customers pay a visit to our website and send us an inquiry to see our price and delivery time.Our sales Manager email: sales@pindee.com

Structural design: The triple eccentric shaft butterfly valve adopts three eccentric designs, and the connection between the valve stem and the valve plate adopts a double eccentric structure, so that the valve has good adaptive performance during the opening and closing process.
Sealing performance: Triple Offset Yoke Butterfly Valve uses high-quality sealing materials and unique sealing structure to ensure the sealing performance of the valve under various working conditions. Its sealing structure includes the valve seat, valve plate sealing surface and compensation mechanism, which can effectively prevent medium leakage and ensure system safety.
Fluid characteristics: The triple eccentric shaft butterfly valve has a small flow resistance, so it can reduce energy consumption and reduce the fluid transportation resistance when transporting fluid. In addition, the valve’s opening adjustment range is large, which can meet flow requirements under different working conditions.

ITEM	Standard
Design	EN593 \| API609
Face to Face	EN558 \| ISO5752 \| API608 \| BS5155-4
Top Flange	ISO5211
Flange Drilling	PN6 \| PN10 \| PN16 \| ASME B16.5 CL150 \| JIS 10K
Pressure Rating	PN6 \| PN10 \| PN16 \| PN25 \| CL150 \| JIS 10K
Tightness Test	ISO5208 \| API598 \| EN12266-1

Part Name	Material/Method
Body	Ductile Iron, Casting Iron, WCB, LCB/LCC, Stainless Steel, Duplex Stainless Steel, Aluminium Bronze
Disc	Ductile Iron(Coated/Lined), WCB, LCB/LCC, Stainless Steel, Duplex Stainless Steel, Aluminium Bronze
Seat	Metal+Flexible Graphite
Stem	304, 316, 420(2Cr13), 431, 1.4462, 17-4PH, Monel
Actuator	Handlever, Worm Gear, Electric, Pneumatic

Ducitle Iron Wafer Butterfly Valve with Worm Gear 7

Pindee Valve Manufacture DN150 Triple Eccentric Yoke Butterfly Valve drawing

SIZE	PN16						150LB
SIZE	D	D1	D2	b	n-ød	L	D	D1	D2	b	n-ød	L
DN100	220	180	158	20	8-ø18	127±2	230	191	157	24	8-ø19	127±3.3
DN125	250	210	188	22	8-ø18	140±2	255	216	186	24	8-ø22	140±3.3
DN150	285	240	212	22	8-ø22	140±2	280	241	216	26	8-ø22	140±3.3
DN200	340	295	268	24	12-ø22	152±2	345	299	270	29	8-ø22	152±3.3
DN250	405	355	320	26	12-ø26	165±2	405	362	324	31	12-ø26	165±3.3
DN300	460	410	378	28	12-ø26	178±2	485	432	381	32	12-ø26	178±3.3
DN350	520	470	438	30	16-ø26	190±2	535	476	413	35	12-ø29	190±3.3
DN400	580	525	490	32	16-ø30	216±2	595	540	470	37	16-ø29	216±3.3
DN450	640	585	550	40	20-ø30	222±2	635	578	533	40	16-ø32	222±3.3
DN500	715	650	610	44	20-ø33	229±2	700	635	584	43	20-ø32	229±3.3
DN600	840	770	725	54	20-ø36	267±3	815	749	692	48	20-ø35	267±3.3
