Product Description

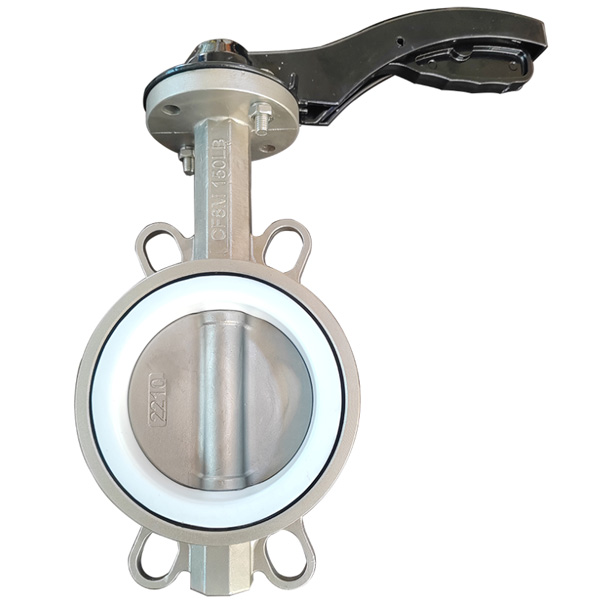

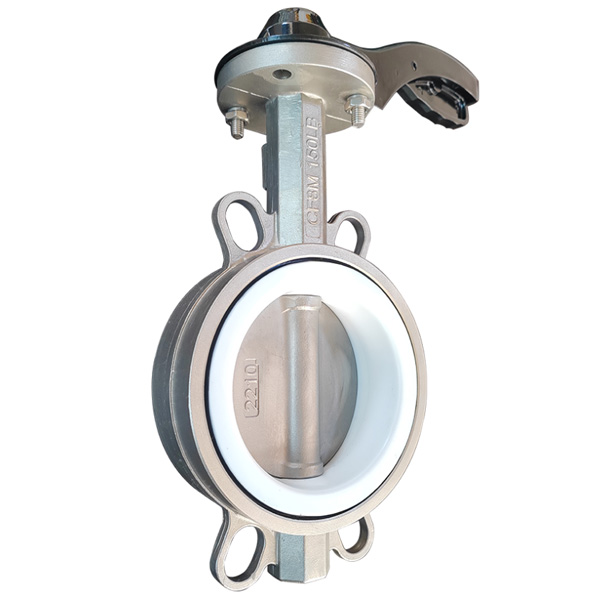

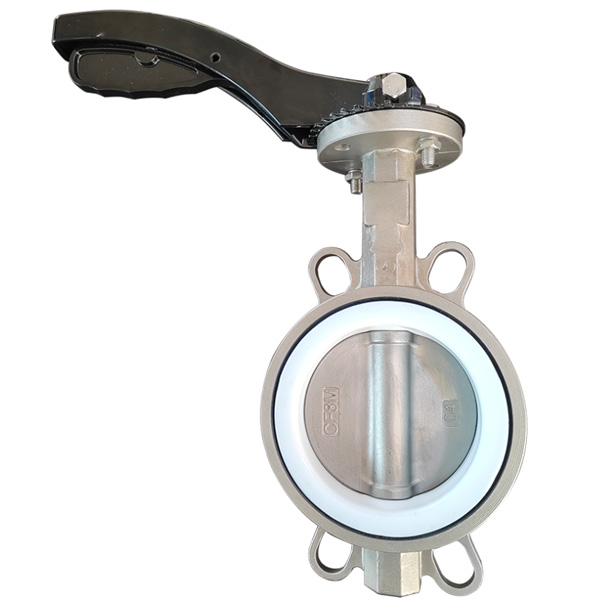

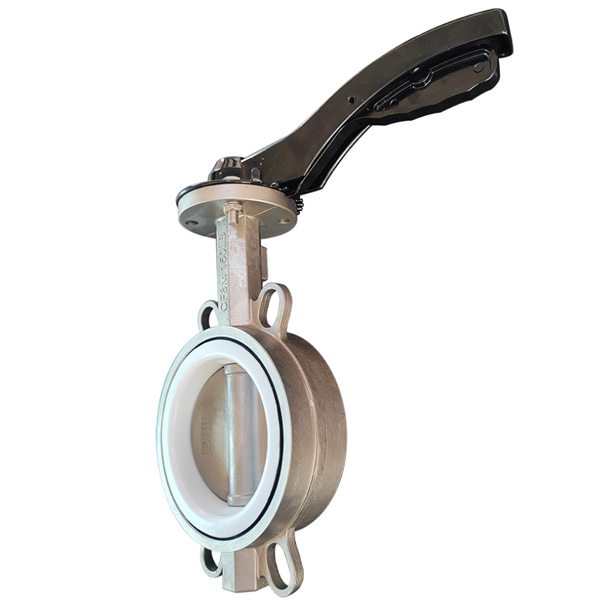

Stainless Steel CF8M PTFE Seat 150LB Wafer Butterfly Valve Manufacture by Pindee Valve which this kind of Stainless Steel CF8M PTFE Seat 150LB Wafer Butterfly Valve is very popular in Asia,Europe, North American, South American,welcome our new and regular customers pay a visit to our website and send us an inquiry to see our price and delivery time.Our sales Manager email: sales@pindee.com
CF8M stainless steel (ASTM A351), offers excellent corrosion resistance, especially in chemical and marine environments.
PTFE seat provides reliable shutoff in both flow directions. It can ensure a tight, bubble-free seal and excellent chemical resistance. It is suitable for PN≤10.
PTFE reduces friction, ensuring smooth and easy operation.
150LB Wafer Butterfly Valve (Class 150) per ASME B16.34, suitable for medium-pressure applications.
Handles aggressive and corrosive media, including acids, alkalis, and solvents.

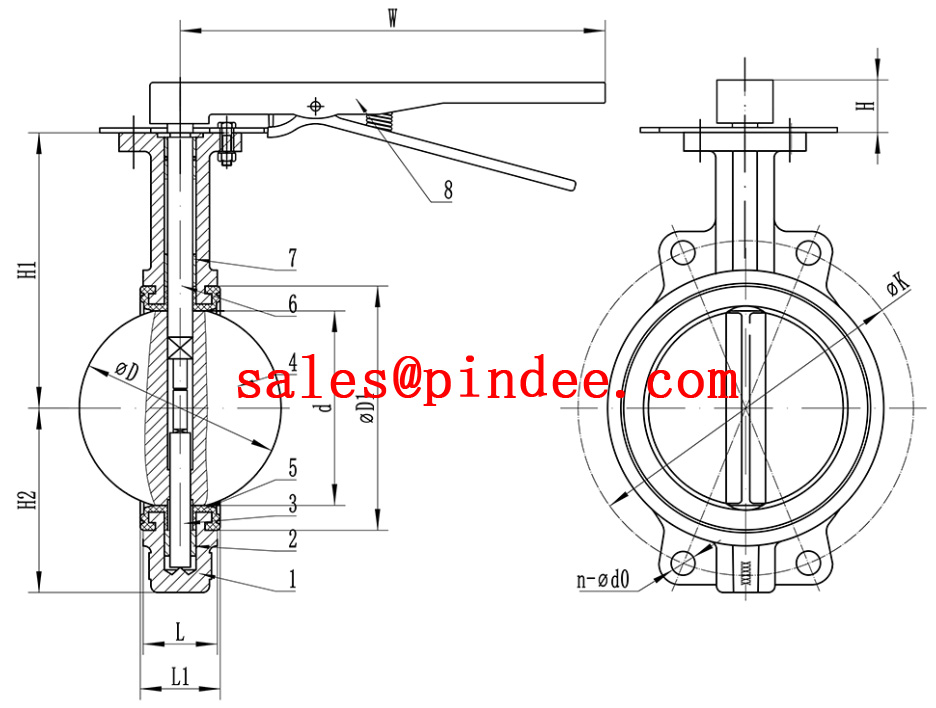

Paraments of Stainless Steel CF8M PTFE Seat 150LB Wafer Butterfly Valve
DN50-DN200
| SIZE | ∅D | øK | n-∅d0 | øD1 | d | L | L1 | H | H1 | H2 | W |
| DN50 | 53 | 120.7 | 4-∅19 | 76.3 | 45 | 43 | 46 | 25 | 140 | 64 | 170 |
| DN65 | 64.5 | 139.7 | 4-ø19 | 94 | 59.4 | 45.6 | 49 | 25 | 143 | 80 | 170 |
| DN100 | 104 | 190.5 | 4-∅19 | 135 | 97 | 52.1 | 56 | 25 | 170 | 96.7 | 215 |
| DN125 | 123.2 | 215.9 | 4-∅22.4 | 166 | 117 | 56 | 60 | 25 | 190 | 117 | 215 |
| DN150 | 156 | 241.3 | 4-∅22.4 | 188.4 | 146.3 | 56 | 60 | 25 | 210 | 137 | 215 |
| DN200 | 202 | 298.5 | 4-ø22.4 | 238.2 | 193.7 | 60 | 64 | 35 | 235 | 168 | 265 |

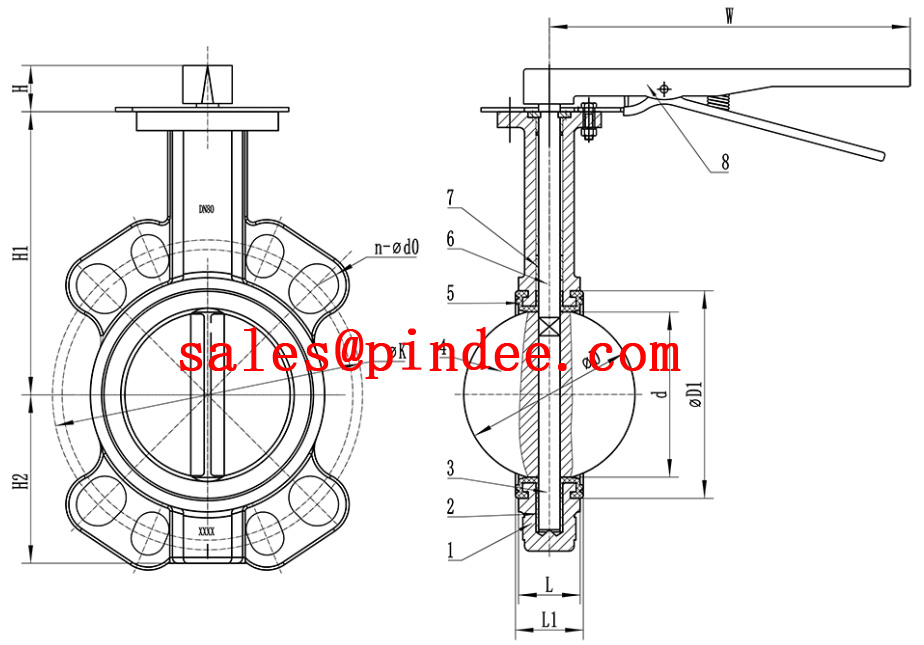

DN80
| SIZE | ∅D | øK | n-∅d0 | øD1 | d | L | L1 | H | H1 | H2 | W |
| DN80 | 77.3 | 152.4 | 4-∅19 | 103.9 | 78 | 45.2 | 49.3 | 25 | 155 | 94.4 | 170 |
