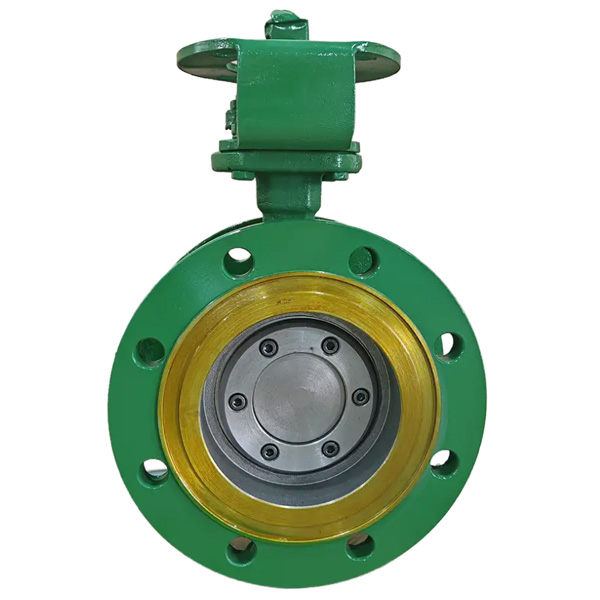

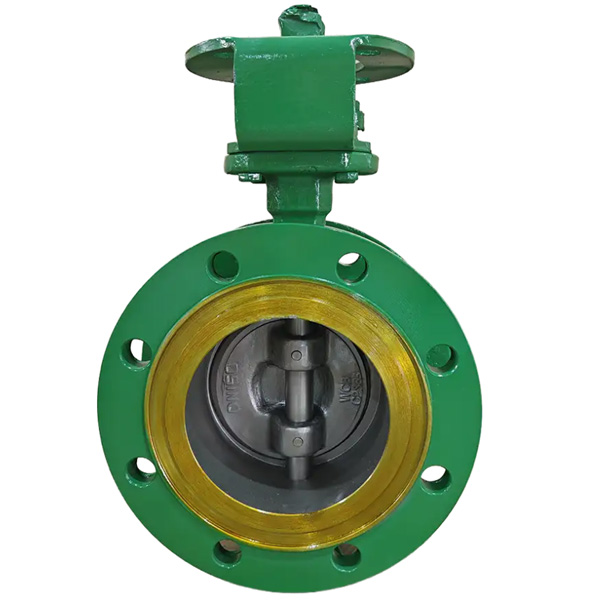

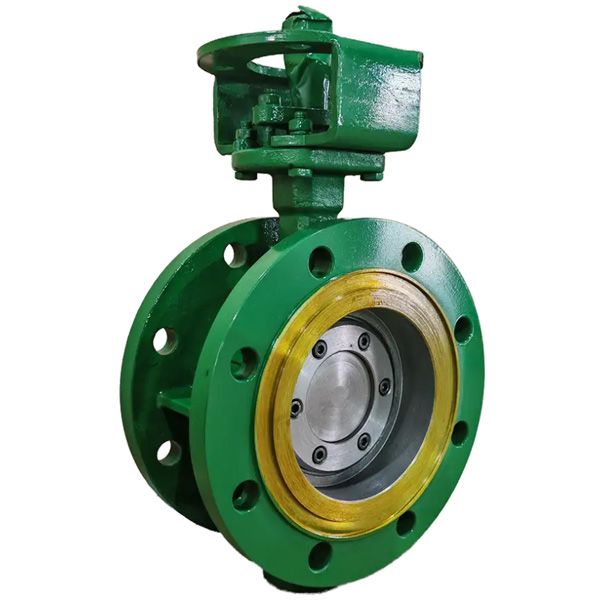

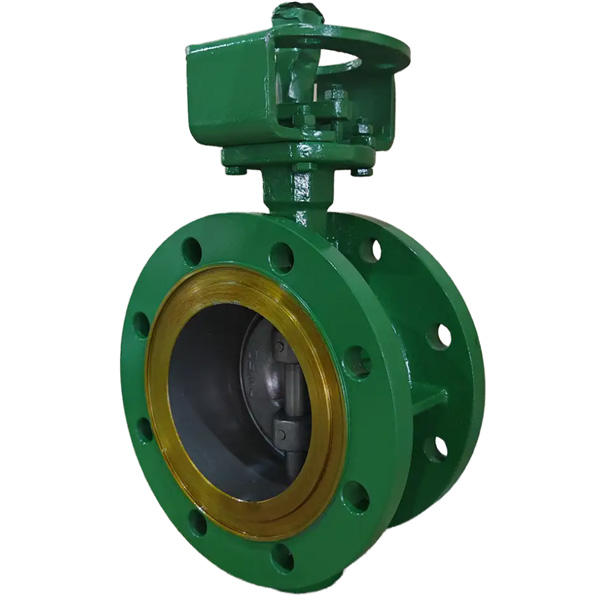

Pindee Valve Manufacture Triple Offset Type D Flanged Butterfly Valve

The triple offset D-type flange butterfly valve features superior sealing, durability and safety. The metal-sealed triple offset design ensures zero leakage, even in demanding environments such as high-pressure and high-temperature systems. It is commonly used in industries such as oil and gas, petrochemical, power generation and water treatment.
Sample: available
MOQ=1 SET
Customization/OEM: accept

Availability:

Quantity:



Inquire

Product Description

Product Description

Pindee Valve Manufacture Triple Offset Type D Flanged Butterfly Valve which this kind of Triple Offset Type D Flanged Butterfly Valve is very popular in Asia,Europe, North American, South American,welcome our new and regular customers pay a visit to our website and send us an inquiry to see our price and delivery time.Our sales Manager email: sales@pindee.com

Size Range: DN50-DN3000
Temperature Range: -196°C to 800°C
D type flange connection, there is a groove on the flange surface of D Flanged Butterfly Valve. Compared with ordinary raised face flange and flat face flange, D type is more firmly connected to the pipe.
Triple Offset Design The triple offset d flanged butterfly valve provides a metal-to-metal or multi-layer sealing mechanism to ensure a bubble seal with minimal wear on the sealing components. This design eliminates friction between the disc and the seat during operation, reduces torque and extends the life of the valve.
High temperature and high pressure design The triple offset butterfly valve features a metal seat, making it ideal for high temperature and high pressure applications. And, it maintains performance even in abrasive and corrosive environments.
The butterfly valve is designed to meet fire protection standards and is suitable for environments such as refineries and chemical plants where fire protection is critical.

ITEM	Standard
Design	EN593 \| API609
Face to Face	EN558 \| ISO5752 \| API608 \| BS5155-4
Top Flange	ISO5211
Flange Drilling	PN6 \| PN10 \| PN16 \| ASME B16.5 CL150 \| JIS 10K
Pressure Rating	PN6 \| PN10 \| PN16 \| PN25 \| CL150 \| JIS 10K
Tightness Test	ISO5208 \| API598 \| EN12266-1

Part Name	Material/Method
Body	Ductile Iron, Casting Iron, WCB, LCB/LCC, Stainless Steel, Duplex Stainless Steel, Aluminium Bronze
Disc	Ductile Iron(Coated/Lined), WCB, LCB/LCC, Stainless Steel, Duplex Stainless Steel, Aluminium Bronze
Seat	Metal+Flexible Graphite
Stem	304, 316, 420(2Cr13), 431, 1.4462, 17-4PH, Monel
Actuator	Handlever, Worm Gear, Electric, Pneumatic

Ducitle Iron Wafer Butterfly Valve with Worm Gear 7

Pindee Valve Manufacture DN150 Triple Eccentric Yoke Butterfly Valve drawing

SIZE	PN16						150LB
SIZE	D	D1	D2	b	n-ød	L	D	D1	D2	b	n-ød	L
DN100	220	180	158	20	8-ø18	127±2	230	191	157	24	8-ø19	127±3.3
DN125	250	210	188	22	8-ø18	140±2	255	216	186	24	8-ø22	140±3.3
DN150	285	240	212	22	8-ø22	140±2	280	241	216	26	8-ø22	140±3.3
DN200	340	295	268	24	12-ø22	152±2	345	299	270	29	8-ø22	152±3.3
DN250	405	355	320	26	12-ø26	165±2	405	362	324	31	12-ø26	165±3.3
DN300	460	410	378	28	12-ø26	178±2	485	432	381	32	12-ø26	178±3.3
DN350	520	470	438	30	16-ø26	190±2	535	476	413	35	12-ø29	190±3.3
DN400	580	525	490	32	16-ø30	216±2	595	540	470	37	16-ø29	216±3.3
DN450	640	585	550	40	20-ø30	222±2	635	578	533	40	16-ø32	222±3.3
DN500	715	650	610	44	20-ø33	229±2	700	635	584	43	20-ø32	229±3.3
DN600	840	770	725	54	20-ø36	267±3	815	749	692	48	20-ø35	267±3.3
